5 Lines New Design Edge Embossing Face Tissue Making Machine

Product Description

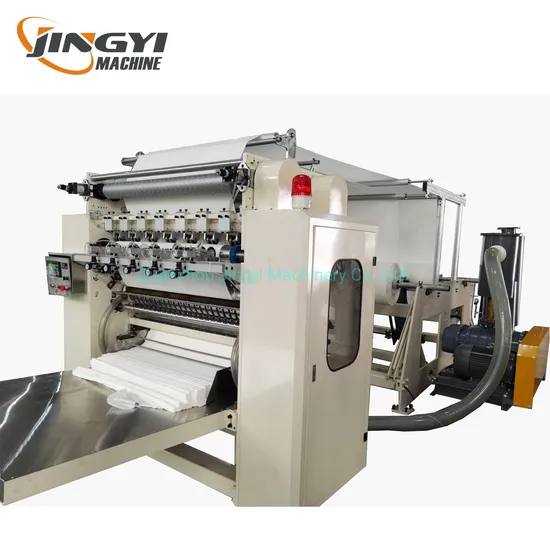

5 lines new design edge embossing face tissue making machine
Main Technical Parameter:

Products unfolded size	180/190/200/210×(120-210)mm (width is adjustable)
Products folded size	90/95/100/105*(130-210)mm (width is adjustable)
Jumbo roll specification (mm)	width 1080mm 13~17g/m2×2 ply Jumbo roll diameter ≤1100mm
Jumbo roll core inner diameter	76.2mm (Other sizes can be designated)
machine speed	60-100 m/min*lines
Embossment unit	Steel to rubber roller, steel to steel embossment, steel to paper roller. (standard is steel to paper roller, can be chosen by customer)
Edge embossment	Steel to steel, independent pneumatic adjustment
Slitting system	Pneumatic mode point-cutting
Vacuum system	15KW
Pneumatic system	3Pa air-compressor, minimum pressure 5kg/cm2 Pa (customer should prepare)
Machine power	9kw/11kw/15kw/22kw, (380V, 50Hz)
Driving system	Timing belt driving
Machine dimension	7× (1.2~2.5) ×1.8m
Weight of machine	2~6T

Machine Function & Character: This machine use jumbo roll to process folded into "V" or "N" type facial tissue. It adopts the vacuum absorption and mainpulator auxiliary folding principle. With the function of auto stop when paper breaks, avoid waste caused by no paper or paper broken, with auto counting and pneumatic staggering function to be a whle row output. Pneumatic jumbo roll lifting system,stepless speed regulation unwind, each jumbo roll is controlled by tension adjusting unit. With advanced PLC program controlling system, frequency speed regulator,easy for operation and save energy. Can choose the steel to steel edge embossing unit,with independent pneumatic compress wheel, high ragidity embossing roller. So that when produce facial tissue without embossing, the two plies together, make the products looks more beautiful, and flexible to market demand. This machine can also be used to produce hand towel.
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Workshop:
About the package and shipping:
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sale Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu

---
