LED Power Supply IP67 Outdoor LED Power Supply PWM/0-10V Controlled Power Supply

Product Description

LED Power Supply IP67 Outdoor LED Power Supply PWM/0-10V Controlled Power Supply Product Description
3Ray Lighting is working close with almost all brands of LED drvier manufacturers, all types LED driver available
Suitable for indoor / Outdoor Applications vary from AC85-277V input. Constant current output. 10-320W available.
Also available DC-DC drivers for solar system. Brands such as Meanwell,Inventronics, MOSO or other Chinese brand optionnal.

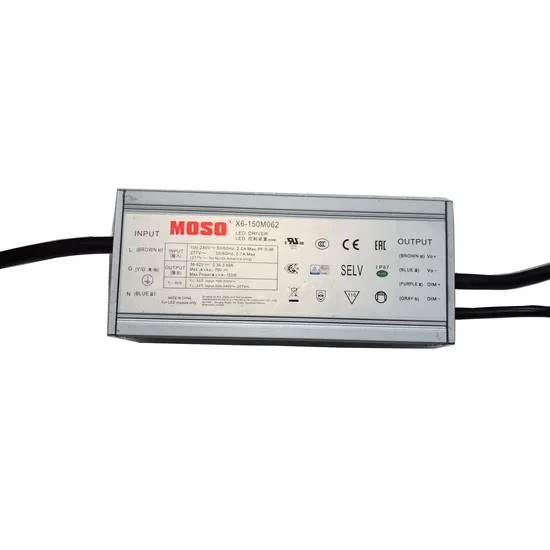

5 Years warranty. For more detailed parameters, please contact us. Let's make an example by MOSO X6-150W driver. Input voltage: 90 ~ 305Vac; Isolated constant power design; Off-line programmable; 0-5V/0-10V/PWM/timer dimming, optional reverse dimming, Dim-to-off, CLO, work log function; Surge protection: DM 6 KV, CM 10KV; All-around protection: output SCP, OVP, OTP; Ingress protection rating: IP67; Warranty: 5 years. Model:X6-150M041 , X6-150V041 , X6-150M062 , X6-150V062 , X6-150M108 , X6-150V108 , X6-150M143 , X6-150V143 , X6-150M214 , X6-150V214

Product Parameters

Model	Power(W)	Output voltage (Vdc)	Full power current range(A)	Default output current(A)	Typ. eff.	Typ. PF
X6-150Y041	150	20~41	3.66~5.40	20~35V/4.20	91.0%	0.97
X6-150Y062	150	38~62	2.42~3.60	38~47V/3.15	91.0%	0.96
X6-150Y108	150	54~108	1.40~2.10	54~71V/2.10	91.0%	0.96
X6-150Y143	150	80~143	1.05~1.50	80~143V/1.05	92.0%	0.97
X6-150Y214	150	107~214	0.70~1.05	107~214V/0.70	92.0%	0.97

Note: Y=M,Programmable output with,0-5V/0-10V/PWM/timer dimming;Y=V,output current adjustable through built-in potentiometer.


Company Profile MOSO is a Chinese listed company which is specialized in developping and producing led power supply, they have advanced manufacuring plants for almost all kinds of led power supplies. Their led drivers are famous brand both home and abroad. We strongly recommend customers to use MOSO drivers to their led lamps, they offer quality warranty of 5 years.
Detailed Photos
Packaging & Shipping

---
