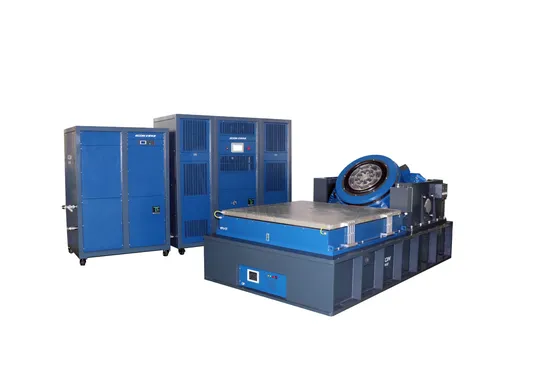

200kN Electro-Dynamic Vibration Testing Shaker (Water Cooled Shaker)

Product Description

Product Description EDH series water-cooled electric vibration test system have large force and strong bearing capacity. EDH-20000 has a heat dissipation effect better than that of air cooling. Its moving-coil excitation works at 50°ºC, which is good for larger pieces. The EDH-20000 has a water filtration system to prevent blockages. Its design, welding process, and quality control prevent water leakage.
Features Water cooled, low noise and large force;
Excellent heat dissipation effect;
High-stiffness moving-coil skeleton, high first-order resonant frequency;
Advanced moving-coil cooling method in parallel connection with excitation waterway, higher cooling efficiency and reliability;
Water cooled, low noise and large force;
Excellent heat dissipation effect;
High-stiffness moving-coil skeleton, high first-order resonant frequency;
Advanced moving-coil cooling method in parallel connection with excitation waterway, higher cooling efficiency and reliability;
Double magnetic circuits, low flux leakage and uniform magnetic field;
Air spring trunnion vibration isolation technology, strong vibration isolation capability;
Upper-lower guide roller structure, hydrostatic bearing optional;
Bigger anti-overturning torque;
Product Parameters

System Model	EDH-10000	EDH-12000	EDH-16000	EDH-18000	EDH-20000
Sine force Peak (kN)	100	120	160	180	200
Frequency range (Hz)	5~2500	5~2500	2~2100	2~2100	2~2100
Max. Acceleration (m/s²)	981	981	981	981	981
Max. Velocity (m/s)	2	2	2	2	2
Max. Displacement pp(mm)	76	76	76	76	76
Max. Load (kg)	1000	1000	2000	2000	2000
Effective armature mass (kg)	85	100	160	180	180
