Lanhao Manufacture Metal Sheet Bending Machine for Electric Cabinet

Product Description

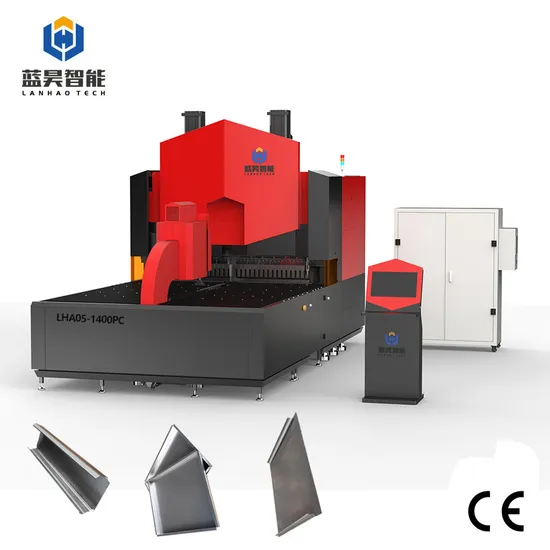

LHA05-PC series intelligent panel bender adopts pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc. Product Parameters

LHA-1400PC-03 Technical parameters
Feeding structure	Pressing arm
Work table structure	Brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	1400mm
Max.Bending size	L 1400mm X W 1400mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm 300mm(customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	40KW
Average power	About 1.9KW
Noise	About 50 dB
Machine size	L440cm X W190cm X H290cm
Total weight	About 12 tons
User operating environment	Win7 or above system
Max. Bending thickness	UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0 mm UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel thickness	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	15
