Chinese Blin Slant Bed CNC Lathe for Alloy (BL-H40L)

Product Description

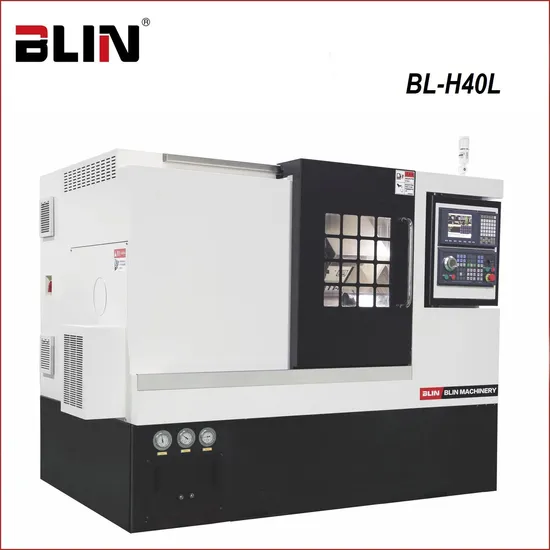

high quality slant bed cnc lathe machine with tool turret(BL-H40L)
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand - Adopt 45°integral slant bed design - Adopt ROLLER type linear guideway,super high rigidity - Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability - Base adopt multilayer strengthening rib, ensure bed's strength and stability - Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range - Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity - Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway - Mount 10T hydraulic-servo tool turret
Details:

Item	Specification	Unit	BL-H40L
Capacity	Chuck size	/	6''/8''
	Max. swing dia. over bed	mm	Φ410
	Max. swing dia. over saddle	mm	Φ230
	Max. turning length	mm	400
	Max. turning dia.	mm	Φ300
Spindle	Spindle bore	mm	Φ56
	Spindle end type	/	A2-5
	Spindle speed	rpm	4000
	Max. bar through dia.	mm	44
	Spindle motor power	kw	7.5
X/Z axes	X/Z axes linear guideway type	/	ROLLER type
	X axes travel	mm	180
	Z axes travel	mm	400
	X/Z axes rapid moving speed	m/min	30
Tool turret	Tool turret type	/	10T Hydraulic-servo
	Toolshank size	mm	25×25, Φ32
Tailstock	Tailstock quill taper	/	MT4#
	Tailstock body max. travel	mm	350
Accuracy	Positioning accuracy(X/Z)	mm	±0.005
	Repeat positioning accuracy(X/Y/Z)	mm	±0.003
Others	Overall size	mm	2300×1500×1700
	N.W.	kg	2800

Main parts list:

Item	Brand
Spindle unit	TAIWAN-KENTURN
Tool turret	TAIWAN-MYKUN
Ball screw	TAIWAN-HIWIN/PMI
Ball screw bearing	GERMANY-FAG
Linear guideway	TAIWAN HIWIN/PMI
Lubrication system	JAPAN-HERG
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Main electricity parts	FRANCE-SCHNEIDER

Standard configuration: -SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic-servo tool turret
-Hydraulic tailstock Optional configuration: -SYNTEC/SIEMENS 828D/FANUC CNC controller
-Automatic chip conveyor
Other models choice:
All our machines range:
