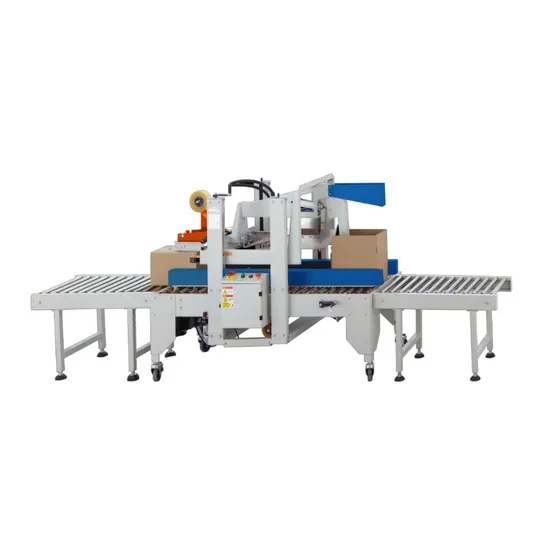

Automatic Case Carton Sealing Machine Flap Folds Carton Sealing Machine

US$2,000.00-5,500.00 1 Set (MOQ)

Basic Info.

Model NO.
MC-06Pro
Packaging
Cartons
Automatic Grade
Semi-Automatic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Outpacking
Type
Sealing Machine
Model
Mc-06PRO
Condition
New
Voltage
110/220/380V/1phase
Power
0.4kw
Weight
240kg
Max Speed
20 CTN/Min
Tape
48-72mm
Certification
CE ISO90001
Specification
1785*916*1650mm
Origin
Jiangsu, China (Mainland)
HS Code
84224000
Production Capacity
300 Set/Sets Per Month

Product Description


TECHNICAL DATASTANDARD FEATURES
Performance:CylinderAIRTAC
Throughput Speed20M/MinuteElectromagnetic ValveAIRTAC
Case Size
(Outside Dimensions)		L:200-600mm
W:150-500mm H:150-500mm		MotorCPG
SensorOMRON
OperationAir Flitter ValveAIRTAC
fold flapsAutomaticTape CutterSKD11(Japan)
adjust sizeManual (MC-06FA model "AUTO")Motor ProtectorS c h n e i d e r
Top & Bottom SealElectric SwitchS c h n e i d e r
Tape48-72mmPLC controlSIEMENS
Machine Head3inch (2inch optional)
Service RequirementsCertificationCE
Air Supply6 Bar & 50NL/minMachine Warranty1 year
Power400W
Voltage110/220V, 1ph, 50/60Hz
Machine DataOptional
Weight240KGTop &Bottom sealHot glue
Dimensions1785*916*1650mm(L*W*H)Safety door systemwith safety sensor
Outfeed Pass Height600 mm +/- 150 mmOutput conveyorcustom made conveyor
MC-06Pro FEATURE
Dual Support Frame
The machine will remain in good condition in a few years to ensure that the flaps folding function and the tape sealing function are intact.		Independent Electric Box
1. SIEMENS PLC control
2. Motor protective relay
3. Easy Signal Exchange by I/O		Safe & Intelligent Function
1. Pre-caution for Tape used up
2. Safety Door System(optional)
3. Belt On/Off by photosensor
FOR RANDOM SIZE wide box MC-06
Length:250-600mm
Width: 150-500mm
Height: 150-500mm
NON SIEMENS PLC control (economical model)
Suitable for production size, no need exchange signal
FOR RANDOM SIZE wide box MC-06FA
Length:250-600mm
Width: 150-500mm
Height:150-500mm
Automatic Flaps fold
Automatic Adjust size
Speed: 6-8ctn/min
Suitable for automatic production line with random size box SUS304 Stainless Steel
Carton Sealing Machine MC-06Pro (stainless steel)
MC-06Pro(Stainless steel) with stainless steel 304 standard frame.
It's suitable for humid environment, widely used in food industry.
MC-06 Main For Automatic Packing Line
