Rubber Canvas Round Gravel Inlet Stone Transport Belt Conveyor

Product Description

Product Description 30 years of focus on the production and sales of mining conveying equipment
Bulk Machine/ Elevator/ Belt Conveyor/ Spiral Sand Washing Machine

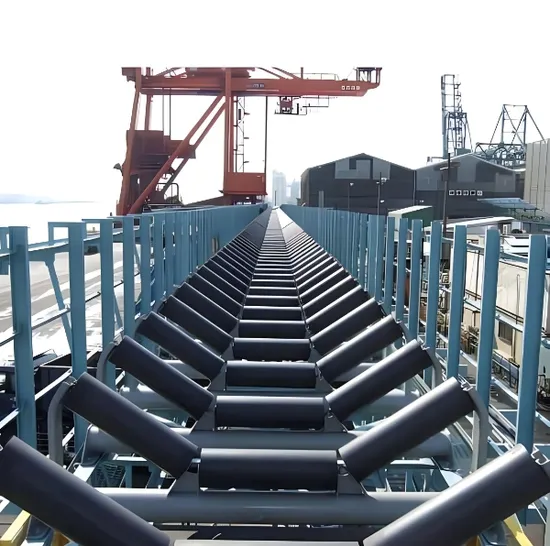

Belt conveyor is a mechanical device driven by friction to continuously transport materials. It mainly consists of a frame, conveyor belt, rollers, rollers, tensioning devices, transmission devices, etc. It can transport materials on a certain conveyor line, forming a material conveying process from the initial feeding point to the final unloading point. It can transport both fragmented materials and finished items. In addition to pure material transportation, it can also be combined with the requirements of the production process in various industrial enterprises to form a rhythmic assembly line for transportation.
1. Simple structure. It has fewer components, strong universality, is easy to standardize production, and can be assembled as needed. Moreover, due to its simple structure, reliable operation, high efficiency, and easy implementation of automation.
2. The range of conveying materials is wide. The conveyor belt of a belt conveyor can be manufactured into a conveyor belt with various performance requirements such as wear resistance, flame retardancy, corrosion resistance, and high and low temperature resistance according to the characteristics of the conveyed object. Therefore, it can transport various loose materials, block materials, chemicals, and concrete.
3. Large conveying capacity. The transportation volume can range from several thousand grams to several thousand tons per hour, and it is continuous and uninterrupted, which is incomparable to other transportation equipment.
4. Long transportation distance. The length of a single machine can reach more than ten kilometers, which has become very popular abroad, without the need for any transfer points. When using the intermediate friction drive method, the conveying length can be significantly increased, theoretically not limited by the strength of the conveyor belt.
5. Loading and unloading materials are very convenient. Belt conveyors can load and unload materials at any point according to production process requirements, and can also load and unload materials on the return section for reverse transportation.
6. High reliability. Due to its simple structure and lightweight moving parts, as long as the conveyor belt is not damaged, its lifespan is relatively long; Metal structural components, as long as they have good rust prevention, are not easily damaged; After the vulnerable part roller is damaged, replacement and maintenance are more convenient and fast.
7. Low energy consumption and high efficiency.
8. Strong adaptability and broad application areas.
Belt Conveyors are the most economical way to transport bulk materials over both short and long distances. Belt Conveyors utilize a belt to transport the material and are control fed in one or numerous inlet areas. The bulk material rides on top of the belt and is contained by the belt trough or side walls. Belt Conveyors are ideal for conveying materials with large and varying particle size.
Belt Conveyors are used in many industries including aggregate, cement, chemical, mining and wastewater treatment industries for conveying and elevating bulk materials.
Product Parameters

Roller form	Traveling speed (m/s)	Belt width (mm)
		500	650	800	1000	1200	1400
		Capacity (m3/h)
Groove roller	0.8	78	130	--	--	--	--
	1.0	97	164	278	435	655	891
	1.25	122	206	348	544	821	1115
	1.6	156	264	445	696	1048	1427
	2.0	191	323	546	853	1284	1748
	2.5	232	391	664	1033	1556	2118
	3.15	--	--	824	1233	1858	2528
	4.0	--	--	--	--	2202	2996
Flat idler	0.8	41	67	118	--	--	--
	1.0	52	88	147	230	345	469
	1.25	66	110	184	288	432	588
	1.6	84	142	236	368	558	753
	2.0	103	174	289	451	677	922
	2.5	125	211	350	546	821	1117
