Product Details
Product Description
Product Description
.Features
Track Temperature (-40°C to 80°C）
Battery operated, place it anywhere
WAN connector connects router for network
Wireless transmission distance is more than 500m(1600ft) in open field(No obstacles)
Receive alarm sound and email alert
Alert multiple users
Set high-low threshold value for alert
Monitors /alerts battery levels
Monitors /alerts if wireless signal lost
Unlimited history of readings for 6 months
Monitor every 5 mins default,customized in factory
No fees or subscription
Free software
One concentrator can work with more than 100pcs sensors
LED light on when taking readings
Requires 1/2 x AA lithium batteries (included)
Battery life: 5+ Years @5mins average data sending time
Manuafacturing,Support OEM/ODM service
2.Product parameter

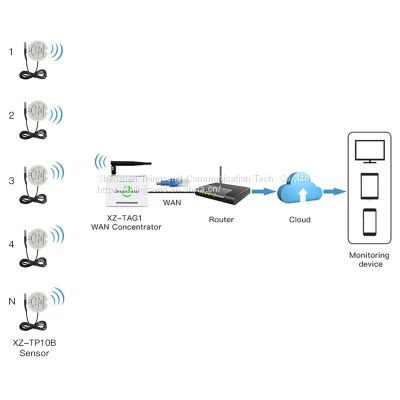

3.Operation process
XZ-TP10B Operation Process
XZ-TP10B is a wireless ultra-low power temperature sensor terminal with ds18b20 probe. Using digital sensors, battery power supply, periodically detect the temperature of on-site environment, and actively report the detection data. It has the functions of active energy consumption control, battery voltage detection, wireless frequency hopping, detection transmission cycle can be set.
XZ-TAG1 operation process:
XZ-TAG1 is Wan concentrator of wireless sensor. After receiving sensor information each time, it will send data to server via wan.
4.Free Software for Monitoring
Using the browser to configure the remote IP, port or domain name, local IP or dynamic IP; one can use our company's Galaxy platform software, which can provide CS stand-alone version and BS cloud service version; we can also provide communication protocol and users build their own platforms.
5.Data protocol
The serial port will output data in 115200bps, 8N1 format (ASCII character) after receiving sensor information.
The output protocol without relay serial port as following:
ID=xxxxxxxx,TEP=±xx.x·C,HUM=xxx.x%,S=0xxxxxxx,V=x.xxV,SN=xxx,RSSI=-xxxdBm
The output protocol with relay serial port as following:
ID=xxxxxxxx,TEP=±xx.x·C,HUM=xxx.x%,S=1xxxxxxx,V=x.xxV,SN=xxx,RSSI=-xxxdBm,RPRI=-xxxdBm
ID: Address data is number 0~9 of 8-bit ASCII;
TEP: Temperature data is ACSII’s -40.9~ +80.9. “℃”is ACSII’s “.”and “C”.
HUM: Humidity data is ACSII’s 000.0 ~ 100.0. The humidity data of XZ-TP10 is always 000.0;
Status word is number 0~1 of 8-bit ASCII;
V: The data of voltage is actual value, unit is “V”；
SN: Serial number of the transmitted data. The serial number of the frequency hopping will be increased when there is data hopping.
RSSI: Received signal strength indicator. The signal will be weaker when the value is smaller.
Example： ID=12345678,TEP=+26.6·C,HUM=000.0%,S=00000000,V=3.60V,SN=120,RSSI=-070dBm
ID=34562345,TEP=-20.5·C,HUM=050.5%,S=10000001,V=3.30V,SN=214,RSSI=-080dBm，RPRI=-78dBm
>>
