Fully Hydraulic Walk-Behind Concrete Laser Screed Rwjp23

Product Description

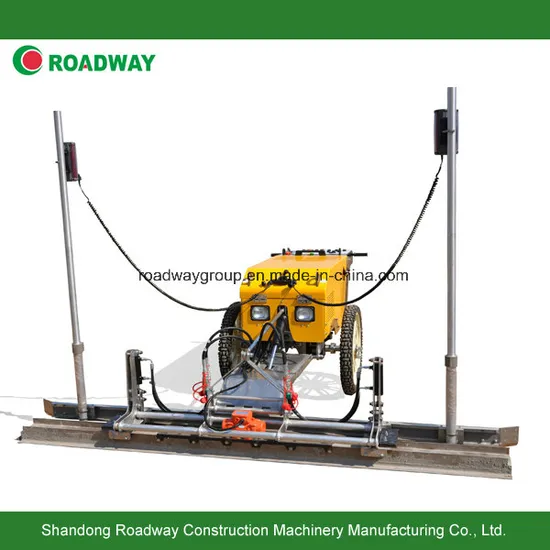

Walk-behind Concrete Laser screed RWJP23
The laser screed is used in large area concrete construction, such as the workshop, supermarket, warehouse, airport, etc.

1. With Trimble laser system
2. Honda GX390 engine
3. Hydraulic control, self-leveling
4. Hydraulic motor drive walking
5. Integrated console, operating easily
6. Two kinds of wheels, thin solid puncture-proof tyre and wide air-filled tyre.
7. Screed head can automatic leveling.

Model	RWJP23
Engine
Model	HONDA GX390 Electric start
ZType	Gasoline engine, air cooled, 4 stroke, OHV, Single cylinder
Power	13hp/3600rpm
Lubricant L	1.12L
Fuel oil volume	6.5L
Fuel consumption	313g/kWh
Running device
Driving	Hydraulic pump and motor
Wheel	2 wheels, solid puncture-proof tyre
Running type	Handle control, stepless speed
Running speed	0-45m/min
Suggest working speed	5m/min
Screed head
Type	Hydraulic control, self-leveling
Width	2500mm
Exciting force	500N
Vibration frequency	50Hz
Laser control system
Control type	Microcomputer control
Steering	Hydraulic control
Hydraulic oil volume	30L
Size and weight
Working size	2826×2622×1980mm
Weight	380kg

---
