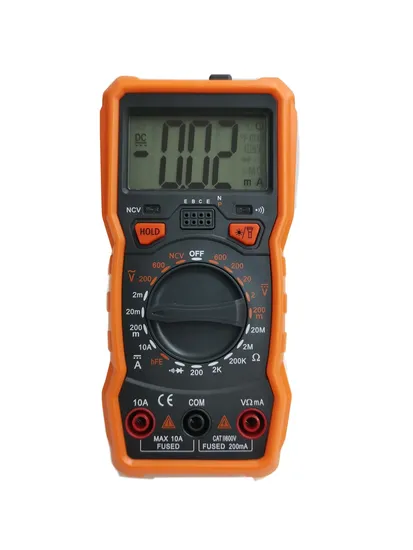

Ld 1012A Digital Multimeter Ture RMS Dmm

Product Description

Company Profile
Introduction:
This multimeter is a multi-function instrument with high measurement accuracy, fast response, and
high safety level.
The circuit design is safe and reliable. It provides measurements of AC and DC voltage AC and DC current, resistance,
capacitance, temperature diodes and circuit continuity test.
The meter is equipped with a backlight, allowing users to read the measurement display in a dark place.
*Operating conditions:
CAT II 600V Pollution grade: 2
Height: under 2000m
Working temperature: 0-40ºC(<80%RH, not considered <10ºC)
Storage temperature: -10-60ºC(<80%RH, take off battery)
Fuse protection: mA range , fuse: FF 200Ma/250V
A range, fuse: FF 10A/250V
Conversion rate: about 3s/second
Display:1999counts LED display
Over range display: 'OL' displayed
Low voltage display of battery: battery icon displayed when the working voltage is low
Input polarity indicator: shown automatically
Features:
1.MAX Display:1999
2.hFE Function
3.Data Hold
4.LCD with Backlight
5.Torch light
6.NCV
Sepcifications:
DC Voltage Range: 200mV ~ 600V
Basic Accuracy:±(0.8%+5d)
AC Voltage Range: 200V ~ 600A
Basic Accuracy:±(1.2%+10d)
Resistance Range: 200Ω~ 20MΩ
Basic Accuracy:±(1.0%+3d)
DC Current range: 2mA ~ 10A
Basic Accuracy:±(1.0%+5d)
Power Supply: 3*AAA battery
Meter Dimension:145x70x45mm
Weight:240g (including batteries)
Accessories: Test Leads, Fuse, Battery, Manual and Giftbox
