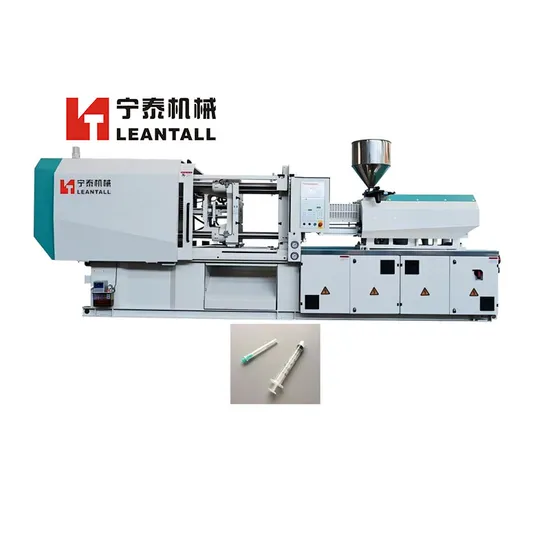

Nt120 Powerful and High Speed Injection Molding Machine with Servo Motor System for Disposable Medical Production Line

Product Description

Product Parameters

Part	Name	Unit	NT120
Injection unit	SCREW DIAMETER	mm	32	35	38
	SCREW L/D RATIO	L/D	22	20	18.5
	INJECTION STROKE	mm	165	165	165
	NJECTION SPEED	Mm/sec	104	104	104
	SHOT VOLUME(THEORETICAL)	CM3	133	158	187
	INJECTION WEIGHT(PS)	g	121	144	170
	INJECTION PRESSURE	Mpa	203	170	144
	INJECTION RATE	cm³/sec	83	100	117
	SCREW SPEED	rpm	210
clamping unit	CLAMP FORCE	Kn	1200
	OPEN STROKE	mm	330
	SPACE BETWEEN TIE BARS	mm×mm	360X360
	MAX.MOULD HEIGHT	mm	380
	MIN.MOULD HEIGHT	mm	150
	EJECTOR STROKE	mm	100
	EJECTOR FORCE	Kn	33
	EJECTOR NUMBER	N	5
others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	11
	HEATING POWER	Kw	7
	MACHINE DIMENSION(L*W*H)	m×m×m	4.25*1.1*1.85
	MACHINE WEIGHT(ESTIMATE)	T	3.1

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
