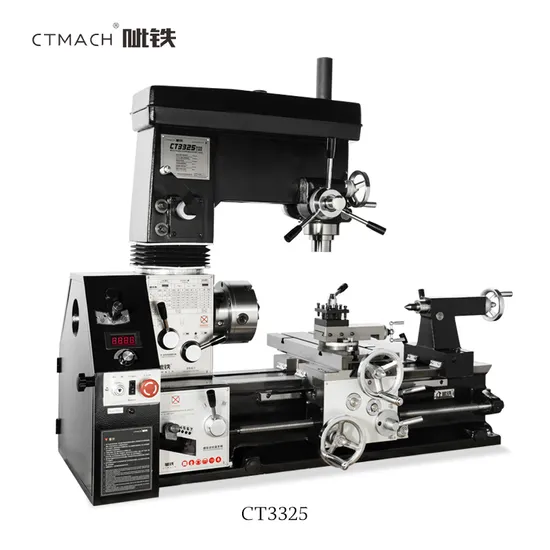

3 in 1 Milling and Drilling Lathe Multi-Purpose Machine CT3325-L with Dro and Variable Speed

US$4,452.00
1-4 Sets
US$4,274.00
5-9 Sets
US$4,096.00
10+ Sets

Basic Info.

Model NO.
CT3325-L
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1640*570*1100mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Turning-parameters
Max. swing over bed 330mm
Max. swing over cross slide 190mm
Table size 450x170mm
Distance between centers(CT3325/CT3325L) 610mm/1000mm
Spindle taper MT4
Spindle bore 28mm
Max. travel of tail-stock sleeve 51mm
Taper of tail-stock MT3
Large carriage travel(CT3325/CT3325L) 508mm/890mm
Middle carriage travel 203mm
Transverse feed /grade 0.019~0.14mm/r (21)
Longitudinal feed /grade 0.038~0.284mm/r (21)
Metric Thread/grade 0.5~3mm(9)
Inch Thread/grade 7~52T.P.I(21)
Spindle speed range/Variable 50~2600R.P.M
Drilling and milling-parameters
Max.Drilling capacity 24mm
Max.milling capacity 63mm
Max.vertical milling capacity 12mm
Drilling and milling box stroke 110mm
Spindle taper MT3
Spindle travel 127mm
Minimum distance from spindle end to table 100mm
Rotation angle of drilling and milling box 360°
Spindle speed range/Variable 50~2600R.P.M
Motor power 1.1KW
Overall dimensions 1325x585x1110mm 1705x585x1100mm
Package Size 1260x570x1100mm 1640x570x1100mm
Net weight/gross weight 300/350KG 330/380KG
