Single Drum Spiral Quick Conveyor Belt Freezer Freezing Machine

Product Description

Product Description

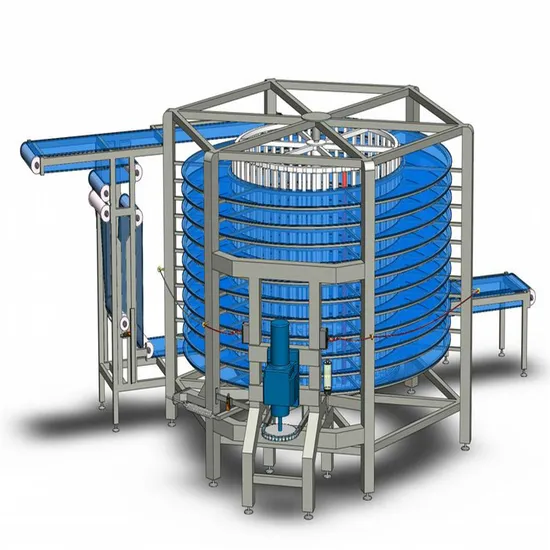

Spiral Belt Conveyor Cooling Freezing Machine
1.Raw Material:All kinds of food, such as cookie, biscuits, toast, bread, pizza,seafood, packed food, meat, spring roll, etc.
2.Output capacity:300-4000kg/h
3.Length: Customized
4.Cooling Temperature: Customized.
5.Main Machine material: Food Grade Stainless Steel
6.Cooling Time: 10-180minutes or customized
7.FOB Price Budget: USD12,900-789,000
8.After-sales Service Provided:Engineers available to service machinery overseas
9.Warranty:1 Year
The spiral conveyor belt quick freezer is advanced design and excellence performance. It has the advantage of energy-conservation, high efficiency, small area requirement and food preservation. The prominent characteristic of this machine is larger freezing area and wide applicable area. The device is applied to food quick-freeze of bar, bulk, slice, particle food, with manifold freezing forms: individual freezing, dollop freezing and discal freezing. With totally enclosed wind tunnel structure for multi-directional wind, such as up and down, front and back ,left and right, which improve quality and efficiency.
Detailed Photos
Product Parameters
Single Drum

Model	ST-LS200	ST-LS300	ST-LS500	ST-LS1000	ST-LS1500
Capacity KG/HR	200	300	500	1000	1500
Power KW	3.55	5.15	11.2	22	31
Refrigeration Consumption KW	30	43.5	75	145	225
Input Temperature ºC	+15	+15	+15	+15	+15
Discharge Temperature ºC	-18	-18	-18	-18	-18
Inner Circulation Temperature ºC	-36±2	-36±2	-36±2	-36±2	-36±2
Freezing Time Minutes	10-60	10-60	10-60	10-60	10-60

Double Drum

Model	ST-LLS1000	ST-LLS1500	ST-LLS2000	ST-LLS2500	ST-LLS3000
Capacity KG/HR	1000	1500	2000	2500	3000
Power KW	22.9	31.9	46.2	55.1	62.5
Refrigeration Consumption KW	145	225	296	370	440
Input Temperature ºC	+15	+15	+15	+15	+15
Discharge Temperature ºC	-18	-18	-18	-18	-18
Inner Circulation Temperature ºC	-36±2	-36±2	-36±2	-36±2	-36±2
Freezing Time Minutes	15-90	15-90	15-90	15-90	15-90

Packaging & Shipping
Installation Instructions
Company Profile

---
