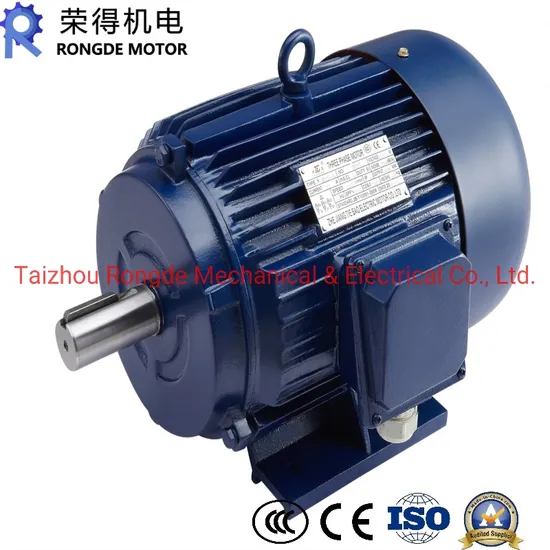

Y2 Series S1 Three Phase Induction Motor Induction Asynchronous Motor

Product Description

Product characteristics :
Y2 series three-phase asynchronous motor is designed for Europe market. The terminal box is located on the top of motor, the motor structure is compact and the appearance is attractive. The signs and nom value are all in conformity with IEC standards the motor have some good feature, such as high effecient, energy-saving, high starting torque and easy maintenance etc.
OPERATING CONDITIONS:

Ambient temperature	-15senti degree≤ 0≤ 40 senti degree
Insulation class	Class F
Frame	No:63~355
Mounting types	B3/B5/B14/B15/B34/B35
Operating mode	S1
Frequency	50Hz, 60Hz
Power	0.12~315KW

Type	KW	Type	KW	Type	KW	Type	KW
Y2-63M1-2	0.18	Y2-100L1-8	0.75	Y2-200L1-2	30	Y2-315M-4	132
Y2-63M2-2	0.25	Y2-100L2-8	1.1	Y2-200L2-2	37	Y2-315M-6	90
Y2-63M1-4	0.12	Y2-112M-2	4	Y2-200L-4	30	Y2-315M-8	75
Y2-63M1-4	0.18	Y2-112M-4	4	Y2-200L1-6	18.5	Y2-315M-10	55
Y2-71M1-2	0.37	Y2-112M-6	2.2	Y2-200L2-6	22	Y2-315L1-2	160
Y2-71M1-2	0.55	Y2-112M-8	1.5	Y2-200L-8	15	Y2-315L2-2	200
Y2-71M1-4	0.25	Y2-132S1-2	5.5	Y2-225S-4	37	Y2-315L1-4	160
Y2-71M1-4	0.37	Y2-132S2-2	7.5	Y2-225S-8	18.5	Y2-315L2-4	200
Y2-71M1-6	0.18	Y2-132S-4	5.5	Y2-225M-2	45	Y2-315L1-6	110
Y2-71M1-6	0.25	Y2-132S-6	3	Y2-225M-4	45	Y2-315L2-6	132
Y2-80M1-2	0.75	Y2-132S-8	2.2	Y2-225M-6	30	Y2-315L1-8	90
Y2-80M1-2	1.1	Y2-132M-4	7.5	Y2-225M-8	22	Y2-315L2-8	110
Y2-80M1-4	0.55	Y2-132M1-6	4	Y2-250M-2	55	Y2-315L1-10	75
Y2-80M1-4	0.75	Y2-132M2-6	4.5	Y2-250M-4	55	Y2-315L2-10	90
Y2-80M1-6	0.37	Y2-132M-8	3	Y2-250M-6	37	Y2-355M-2	250
Y2-80M1-6	0.55	Y2-160M1-2	11	Y2-250M-8	30	Y2-355M-4	250
Y2-80M1-8	0.18	Y2-160M2-2	15	Y2-280M-2	90	Y2-355M1-6	160
Y2-80M1-8	0.25	Y2-160M-4	11	Y2-280M-4	90	Y2-355M2-6	200
Y2-90S-2	1.5	Y2-160M-6	7.5	Y2-280M-6	55	Y2-355M1-8	132
Y2-90S-4	1.1	Y2-160M1-8	4	Y2-280M-8	45	Y2-355M2-8	160
Y2-90S-6	0.75	Y2-160M2-8	5.5	Y2-280S-2	75	Y2-355M1-10	110
Y2-90S-8	0.37	Y2-160L-2	18.5	Y2-280S-4	75	Y2-355M2-10	132
Y2-90L-2	2.2	Y2-160L-4	15	Y2-280S-6	45	Y2-355L-2	315
Y2-90L-4	1.5	Y2-160L-6	11	Y2-280S-8	37	Y2-355L-4	315
Y2-90L-6	1.1	Y2-160L-8	7.5	Y2-315S-2	110	Y2-355L-6	250
Y2-90L-8	0.55	Y2-180M-2	22	Y2-315S-4	110	Y2-355L-8	200
Y2-100L-2	3	Y2-180M-4	18.5	Y2-315S-6	75	Y2-355L-10	160
Y2-100L1-4	2.2	Y2-180L-4	22	Y2-315S-8	55
Y2-100L2-4	3	Y2-180L-6	15	Y2-315S-10	45
Y2-100L-6	1.5	Y2-180L-8	11	Y2-315M-2	132

Taizhou Rongde Mechanical & Electrical Co., Ltd is located in Taizhou, Zhejiang, the cradle of the private economy. Our company With an innovative leadership team, modern management system, high-quality workforce, complete production facilities, complete inspection equipment, strong technical force, reliable product quality, superb offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
1.Q:Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for gearboxes.
2.Q:What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3.Q:Are you a trading company or manufacturer?
A:We are a manufacurer with advanced equipment and experienced workers.
4.Q:What's your production capacity?
A:4000-5000 PCS/MONTH.
5.Q:Free sample is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost.
6.Q:Do you have any certificate?
A:Yes, we have CE certificate and SGS certificate report.

---
