PRODUCT OVERVIEW:
It's is used for drawing and annealing brass or copper rod to 2.6-3.0 mm wire.

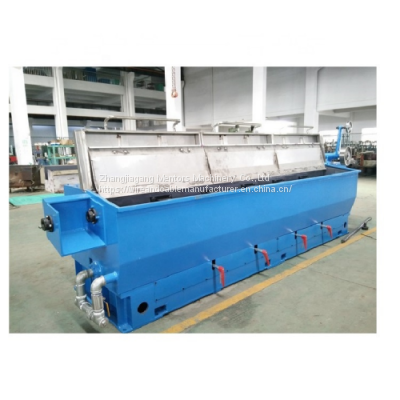

Rod Breakdown Drawing Machine with 9 Dies is equipped with a transmission lubrication circulation system, and all transmission gears and bearings are lubricated by oil injection.
PRODUCT SPECIFICATIONS:
No
| Item
| Data
|
1
| Machine Type
| LHT400/9
|
2
| Max.Die No
| 9
|
3
| Inlet wire dia
| 6.5mm
|
4
| Outlet wire dia
| 2.6-3.0mm
|
5
| Max.Speed
| 500m/min
|
6
| Capstan dia
| 400mm
|
7
| Main motor
| 132kw (AC)
|
8
| Max.annealing voltage
| 85V(AC)
|
9
| Max.annealing current
| 3500A(AC)
|
ADVANTAGES:
（1) Horizontal structure with shaving die system can ensure the good surface.
（2) The capstan is coated with tungsten carbide power, which can keep long life.
（3) High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
（4) AC annealing has longer length for annealing. Especially good for brass wire.
（5) Driving by AC motor, the imported PLC and touch screen (SIEMENS or other famous brand), which is convenient for the operator to set and display the parameter on the touch screen.
FAQ:
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
>>
