4A310-10 aluminum 5 port 2 way Automation Air Control Valves

Product Details

Product Description

Product Description

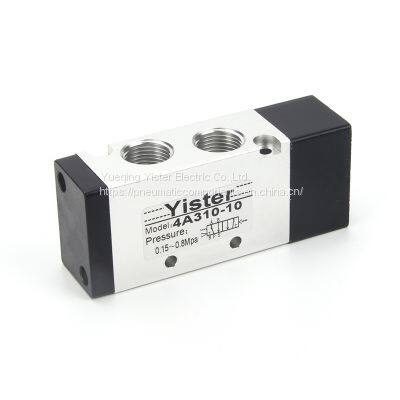

4A310-10 aluminum 5 port 2 way Automation Air Control Valves
Order code
Symbol
Technical parameter

Model	4A310-08	4A320-08	4A330C-08	4A330E-08	4A330P-08		4A310-10	4A320-10	4A330C-10	4A330E-10	4A330P-10
Fluid	Air
Acting	Exterior control
Valve type	5/2 way		5/3 way				5/2 way		5/3 way
Orifice size	25mm2		18mm2				30mm2		18mm2
Lubrication	No required
Port size	In=out=Exhaust=G1/4”					In=out=Exhaust=G3/8”
Protective class	IP65
Pressure range	0.15-0.8MPa
Proof pressure	1.2MPa
Material of body	Aluminum Alloy
Temperature	-5℃~60℃
Response speed	<0.05s

Dimension
Feature
4A310 Series 5/2 Way Air Control Valve
1.Normally Closed, Aluminum body
2.All size can be customized.
3.Spare parts can supply
4.Structure type: guiding valve type
5.Level of protection: IP54
6.Normally Closed,Air operated Control Valve

---
