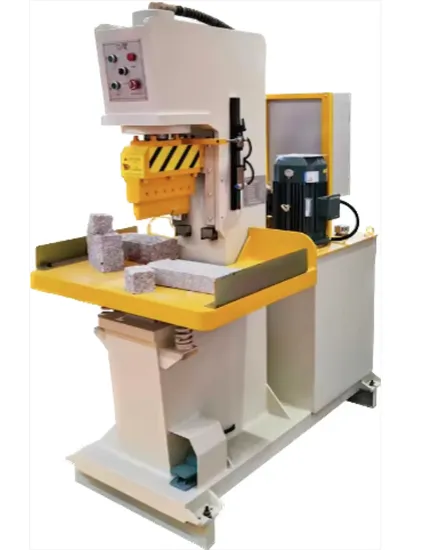

Marble Granite Splitting Cutting Machine for Sale Hydraulic Natural Stone Rock Concrete Block Splitter

Product Description

Product Description
The stone spilitting machine is hydraulically driven and divides the stone into two cubes or blocks for a rustic appearance. Used for the production of flat paving and flat finished products. It allows the execution of various works such as sidewalks, exterior walls and rustic walls.

Product Parameters

Model No		FY-S90H	FY-S95H	FY-S96H
Pressure force	ton	60	80	120
Blade feeding speed	mm/s	80	90	90
Max.working height	mm	200	300	300
Max.working length	mm	300	400	500
Output per hour	m²/h	10	18	18
Power	kw	7.5	11	11
Voltage /Frequency	V/Hz	380/80	380/80	380/80
Flow rate	L/M	41	47	47
Hydraulic oil grade	#	46	46	46
Oil tank capacity	L/kg	240/200	350/290	350/290
Gross weight	kg	1400	1900	2400
Dimensjions(LxWxH)	cm	170×95×200	200×100×220	205×100×215

Detailed Photos
Main features:
* Open frame model, easy to maintain
* Made of strong cast iron and high quality parts to ensure stable work.
* Fast lifting movement, greatly improve work efficiency.
* Wedge chisel balancing system provides maximum contact with the stone surface for cleaner lines.
* Heat-treated and hardened high-carbon steel chisels produce excellent splitting results every time.
