Forestry Wood Log Timbers Waste Tree Bark Diesel Chipping Machine Mobile Logs Chipper Movable Wood Chipping Machine Outdoor

Product Description

The mobile diesel drum chipper/ movable wood chipper is mainly composed of a knife roller assembly, a feeding roller assembly, a conveying device, a hydraulic system, a diesel engine set, wheels, an electrical cabinet and etc. It has the advantages of flexible and easy operation, firm structure, stable performance, and so on. The feeding method is suitable for cutting all kinds of wood, bamboo, wood pallets, building plates and other non-fiber stems.
The drum chipper can cut raw materials such as branches, veneers, waste veneers, bamboo, cotton stalks into sheets of certain specifications, which are used as the basic raw materials for the manufacture of particleboard, fiberboard, non-wood wood-based panels and pulp and paper. Used in various particleboard mills, fiberboard mills, paper mills, biomass pellets plants, biomass power plants and wood chip mills, etc.
TECHNICAL PARAMETER

Model	ZP1300-600	ZP1400-700
Diameter of cutters' roller(MM)	800	1050
Feeding size(LXW, MM)	1300X600	1400X700
Quantity of fly-cutters(PCS)	2*3	24 hammers
Speed of cutters' roller(RPM)	540	690
Feeding speed(M/MIN)	0-33	0-18
Max diameter of logs(MM)	≤340mm(fluff<500mm)	≤600mm
Capacity(T/H)	10-18	15-30
Chips size(MM)	90%≤100mm	90%≤100mm
Main diesel power	380hp remanufactured, 50kw generator	220-250kw
Feeding power(KW)	7.5X2	7.5+5.5
Discharging power(KW)	7.5	11
Hydraulic oil pump power(KW)	3	4

FEARURE 1. The mobile wood crusher adopts chain plate intelligent feeding, which can automatically adjust the feeding speed according to the main motor;
2. The mobile wood shredder is powered by diesel, and the wheels are used for traction, which is convenient for outdoor operations.
3. The mobile wood crusher has a wide range of applications. This equipment can be used for crushing large-diameter materials such as tree roots and waste furniture, and can also be used for crushing baled straw. It is more suitable for small-diameter wood and board scraps. Crushing has the advantages of rapid feeding and high efficiency.
4. Convenient maintenance. The hydraulic material box turning device can realize a large-angle turning when the machine needs maintenance. After turning over, the rotor part is exposed, which is very convenient for maintenance and reduces the use of labor.
5. The production cost is low. The equipment adopts the multi-knife rotor knife roller, which has high efficiency of crushing materials, and the reasonable arrangement and the use of high-quality materials improve the service life of the blades and reduce the production cost.
6. The whole machine has a high degree of automation. The diesel engine-powered wood crusher realizes automatic control of all electrical components, and can realize remote wireless control, which reduces the use of labor and ensures the quality of production.
7. The conveyor belt of the drum chipper can be folded, and the loading belt can be lifted; it is a power source that uses a diesel engine and a generator to cooperate with each other, which solves the difficult problem of large-scale equipment movement. The mobile drum chipper can be moved at will. Field work.

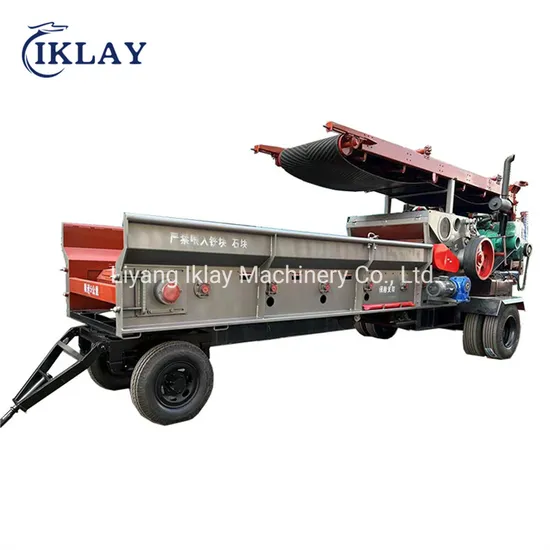

PHOTOS OF DIESEL MOBILE WOOD CHIPPER
DETAILS
