Zmde Heavy-Duty CNC T H Beam Steel Plate Drilling Machine for Steel Fabrication

Product Description

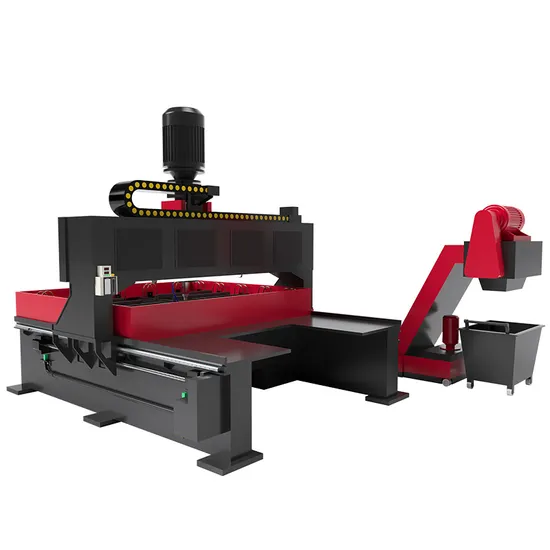

ZMDE Heavy-Duty CNC T H Beam Steel Plate Drilling Machine for Steel Fabrication
------------------------------------------
>Cost-effective equipment <
1. Crafted with solid materials, our equipment boasts a low failure rate, significantly reducing maintenance costs. This includes esteemed industry brands for ball screws, linear guide vices, hydraulic parts, electrical components, servo motors, and frequency converters.
2. The CRT display offers automatic chip removal, cutting down on manual cleaning time and enhancing overall efficiency.
3. Experience high precision with our machinery, ensuring a high qualification rate of workpieces, thus reducing the cost of consumables.
>Simple operation, High productivity <
1. Featuring a human-machine interface, our equipment provides clear visualizations and generates automatic machining programs effortlessly.
2. CNC and PLC control ensures accurate positioning, enhancing overall operational precision.
3. The hydraulic clamps securely hold workpieces as the operator controls them with a convenient foot switch, making the process labor-saving.
4. The table features 12 fast hydraulic clamps, allowing simultaneous clamping of four workpiece groups, optimizing productivity.
5. Small workpieces can be clamped in the four corners of the working table, drastically shortening production preparation cycles and boosting efficiency.
6. By clamping small workpieces at the table's corners, production preparation periods are significantly reduced, leading to improved efficiency.
> Guaranteed quality, wide range of applications <
1. Key components like the gantry, column, and table are made from solid materials, with the main machine weighing up to 6300kg for superior stability.
2. With versatile application across many industries, this equipment is essential for processing connecting plates.
3. The machine supports a wide range of drilling diameters, from 12mm to 50mm, accommodating various project needs.
> Suitable for various production scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Supports small batch production of diverse workpieces, capable of handling various shapes such as rectangular, round flanges, and polygons. It can process two or four different specifications of plates simultaneously.
3. Efficiently produces multiple layers of thinner sheets in stacks, drilling holes up to a maximum depth of 100mm.
4. Automated processing through upper computer software determines start and end points, suitable for drilling through holes, blind holes, step holes, and chamfering hole ends.
> Production process automation <
1. Integrated line board design offers a high degree of automation with automatic positioning based on the drilling program.
2. Adjusts optimal feeding volumes according to different hole diameters, ensuring precise and efficient processing.
3. Capable of automatic and continuous processing of large hole diameters with one-time shaping.
4. Features automatic chip removal to maintain cleanliness and operational efficiency.
Technical Parameters

Machine Configuration
High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
