Basic Info.
Application
Viscous Fluid, Liquid
Application Area
Daily Chemical
Mixing Drum Shape
Optional
Voltage
100-220V, 50/60 Hz
Max. Stirring Quantity(H2O)
20L
Motor Type
Brushless DC Motor
Overload Protection Display
LED Lights
Operating type
Continuous Operating
Mixer Type
Overhead Stirrer
Transport Package
83*220*186mm
Production Capacity
500PCS/Month
Product Description

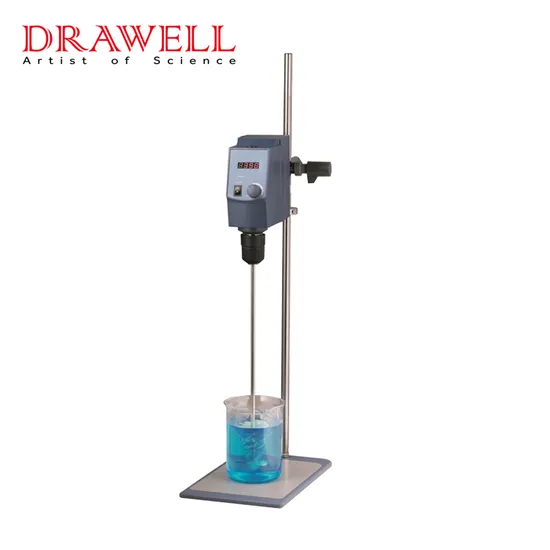

OS20-S 20L Lab LED Digital Overhead Stirrer Laboratory Mixer Overhead Stirrer
Product Feature Overhead stirrer is suitable for mixture of high viscosity liquid or solid-liquid. Widely used in chemical synthesis, pharmaceutical, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other fields
Technical Specification
| Specifications | OS20-S | OS40-S |
| Max. stirring quantity(H2O) | 20L | 40L |
| Motor type | brushless DC motor | brushless DC motor |
| Motor input power | 60W | 120W |
| Motor output power | 50W | 100W |
| Voltage | 100-220V, 50/60 Hz | 100-220V, 50/60 Hz |
| Power | 70W | 130W |
| Speed range | 50-2200rpm | 50-2200rpm |
| Speed display accuracy | ±3rpm | ±3rpm |
| Speed display | LED | LED |
| Overload protection display | LED lights | LED lights |
| Max. torque | 40Ncm | 60Ncm |
| Viscosity max. | 10000mPas | 50000mPas |
| Chuck range diameter | 0.5-10mm | 0.5-10mm |
| Dimension[WxHxD] | 83x220x186mm | 83x.220x186mm |
| Weight | 2.8kg | 2.8kg |
| Protection class | IP42 | IP42 |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C 80%RH |
