Automatic Industrial Hydraulic Roll Paper Embossing Creasing Die Cutting Machine for Cup Box Plate

Product Description

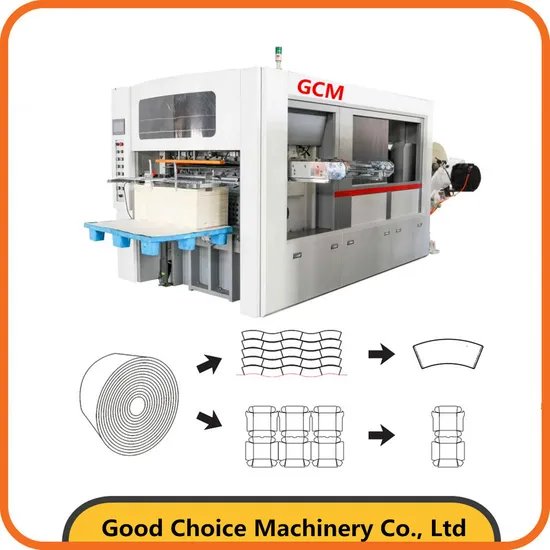

Paper Roll Die Cutting and Creasing and Embossing Machine
Product Description PY-950/1200 is an ideal and professional machine in die-cutting,,creasing,embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, and pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.
Technical Parameter:

Technical Specification
Type	PY-950 ;PY-950P	PY-1200	PY-1300	PY-1450
Production capacity	150-260 times/min(Mechanical speed max 260 times)
Paper Convey Width	970-300mm	1220-300mm	1320-300mm	1470-300mm
Maximum cutting size	950 x540mm;950 x640mm	1200 x640mm	1200 x750mm	1450 x750mm
Total Weight:	9T; 9.5T(heavy duty)	10T	12T	14T
Overall Dimension:	4.35 x 2.1 x 1.85m	4.350x2.300x1.85m
Suitable Material:	100-800g/m2 white cardboard, PE coated paper, Kraft paper.etc
Total Power and Air source:	14KW; 0.6Mpa; 0.3m³/min; 380V/50HZ (other voltage can be customized)
Max Roll paper diameter	1800mm
Cut Precision:	± 0.10mm

Our Advantages 1. Directly coupled servo motor driving with reduce motor, which can speed up to 260 times/min
2. Enhanced machine core to take much more pressure, up to 350T.
3. Positioning block in movable platform we add one more positioning block in movable platform. It makes the pressure of the platform more stable, and endurable.
4 Oil circuit and oil detection system
The outside oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil
5. Machine adopt IOT technology
Not only Customer can supervise the machine operation situation on Mobile APP, manufacture also can through this app to full remote control to provide the after-sale service. So both of two parts can save the service time and money.
6. Paper blocked alarm system
The new design adds the alarm system to make the machine stop when paper feeding blocked.
7. Paper feeding balance regulator
add new type paper feeding balance regulator to adjust he minor unbalance situation.
8. Paper roll tension system
use proportional valve control, automatic tension control,and easy operation.
Main components

Motor	Main motor	GONGTAI(CHINA)
	Servo motor	INOVANCE
	Stepper motor	SOYO(CHINA)
	Pressure adjusting motor	MAILI (TAIWAN)
Electric elements	Servo driver	INOVANCE
	Touch scream HMI	WEINVIEW(TAIWAN)
	PLC	INOVANCE
	Frequency converter
	All other electrical parts	SCHNEI DER
	relay	OMRON
	bottom	AUTONICS(KOREA)
	encoder
	Photoelectric switch
	photoelectric color mark	PANASONIC(JAPAN)
Pneumatic	Main air cylinder	AIRTAC(TAIWAN)
	Solenoid valve and other parts
	pneumatic clutch
