Driven Disc Plough Plow for Farm Paddy Field Agriculture Machinery Parts

Product Description

Product Description
Our main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. The Single-way disc plough is matched with four-wheel tractor, the discs of plough are revolving to furow the land during operalion. Themounted disc plow is especially suitable for land which have weeds, stems and frictional soll with small brick etc.

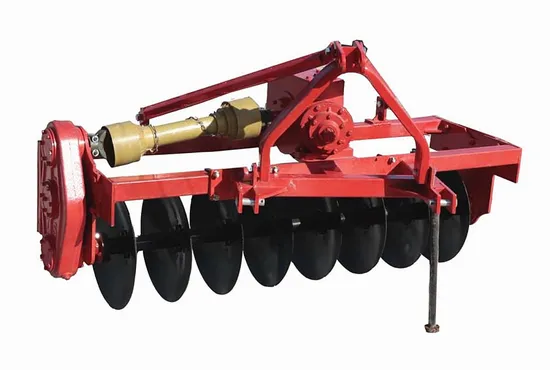

The 1LYQ series drive disc plough is a standard three-point suspension, with two sets of transmission systems, intermediate gear train and side box gear train, which can be matched with 20-150 HP tractors. Tire marks can be completely covered after ploughing, so it can improve the quality of tillage and work efficiency. The machine is suitable for dry land and paddy fields. When cultivated in paddy fields, it can completely turn the soil over and level it. It can cut straw such as wheat and rice and bury it in the soil, where it rots and adds organic matter to the soil. The machine also has the characteristics of saving time, saving labor, improving work efficiency, and reducing costs.
If there is any needs or questions, feel free to contact me via email or phone.
Detailed Photos
Product Parameters

Model	Size of disc(mm)	Weight (kg)	Tractor power (hp)	Delivery size of single set
1LYQ-320 Circular beam	510*4	230	20-30	1.2*0.9*0.9
1LYQ-420 Circular beam	510*4	250	25-30	1.4*0.9*0.9
1LYQ-520 Circular beam	510*4	280	25-35	1.6*0.9*0.9
1LYQ-522 Circular beam	560*4	330	35-45	1.6*0.9*0.9
1LYQ-622 Circular beam	560*5	360	40-55	1.8*0.9*0.9
1LYQ-722 Circular beam	560*5	390	55-65	2.0*0.9*0.9
1LYQ-822 Circular beam	560*5	420	65-75	2.2*0.9*0.9
1LVQ-722 Square beam,1 transmission	560*5	600	80-100	2.2*1.0*1.0
1LYQ-822 Square beam,1 transmission	560*5	650	80-100	2.4*1.0*1.0
1LYQ-922 Square beam,1 transmission	560*5	700	90-120	2.6*1.0*1.0
1LYQ-822 Square beam,2 transmission	560*5	700	90-120	2.6*1.0*1.0
1LYQ-922 Square beam,2 transmission	560*5	750	100-120	2.8*1.0*1.0
1LYQ-1022 Square beam,2 transmission	560*5	800	100-120	3.0*1.0*1.0
1LYQ-825 Heavy square beam,2 transmission	610*5	850	110-150	3.1*1.0*1.0
1LVQ-925 Heavy square beam,2 transmission	610*5	900	110-150	3.4*1.0*1.0
1LYQ-1025 Heavy square beam,2 transmission	610*5	950	110-150	3.7*1.0*1.0

Application
Packaging & Shipping
Company Profile

---
