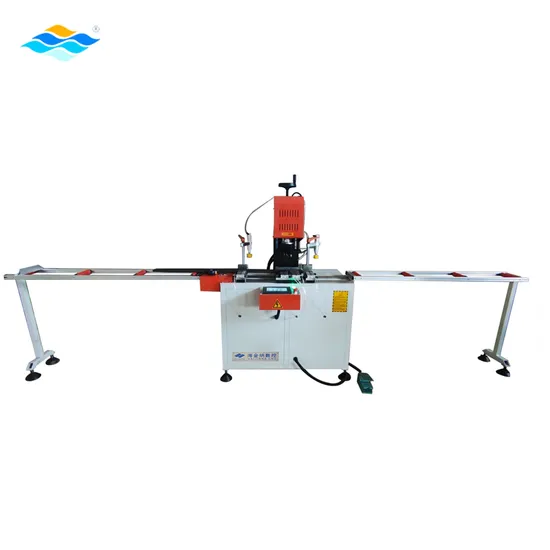

Auto Feed CNC Drilling Machine for Thin-Walled Aluminium Profile and Shutter Window

Product Description

Product Description
This machine is mainly used for drilling process on louver window,as well as multiple holes drilling on other aluminum or plastic profiles.
Standard Features:
CNC control system, drilling positions and spacing can be adjusted by CNC system, It has fast approach, uniform speed, fast return device with high efficiency; Feeding speed is by stepping motor or servo motor(optional), so the feeding is stable Detailed Photos


Product Parameters

Model	BYZ-S02
Power supply	3P 380v/50hz
Drilling motor power	1.5kw
Profile-feed motor power	400w
Profile-feed rate	0-6m/min
Feed stroke	Single feed:250mm 4-time feed:1000mm(Max.)
Air pressure	0.5-0.8Mpa
Air consumption	30L/min
Rotation rate	2840rpm
Drill bit size	Ø3-Ø7mm
Collet	ER11
Hole spacing(multi-spindle head)	20-112mm
Max.clamping width	130mm
Machine dimension	1300*1000*1700mm
Roller conveyor length	2*1500mm

Company Profile

HISENA specializing in production and selling UPVC and aluminum doorsand windows manufacturing machines.Our company is located in Jinan, China. We have professional team of 50staff in R&D, production, marketing and after-sales service.The greatest features of our machines are high quality, strong durabilityand stability, and we offer the best price/performance ratio without sacri-ficing quality.We provide multiple solutions to meet the different needs of customersand also we support the customization of equipment.HISENA has obtained lS0 9001,CE certificate, more than 10 patent cer.tificates, and high-tech enterprise certificate. Taking the customer expe.rience as the center, HISENA constantly updates the interactive experi-ence of machines and improves the use of operating procedures.The perfect pre-sales and after-sales service has won the unanimoustrust of many customers at home and abroad.

---
