Xk7130 China Small Economy Metal CNC Milling Machine

Product Description

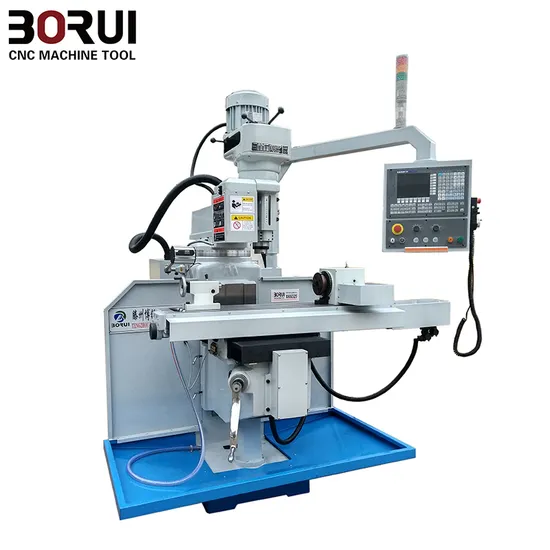

XK7130 China Small Economy Metal CNC Milling Machine
Feature:
This CNC Milling Machine can be used for milling, boring, drilling. The machine is suitable to perform various procedures such as plane surface, inclined surface, slot, gears, spline and grooves. It's therefore to meet maintenance and manufacture in various enterprises, especially for manufacturing tools, fixtures and dies, etc.
The structrue:
This CNC Milling Machine is composed of the base, table, column, milling machine head, rise-and-fall mechanism, lubrication system, cooling system and electric system. The electric cabinet is installed on the rear face of the column, the electric operation panel is hanged in the front of the right side of the column, operateon is convenient.
Technical specification:

Specification	Unit	XK7130A
X-axis travel	mm	460
Y-axis travel	mm	210
Z-axis travel	mm	360
Spindle nose to table	mm	120-480
Spindle center to column guide-way face	mm	200-500
High speed feeding of X, Y axis	mm/min	3000
Feeding speed	mm/min	1-2000
Size of working table	mm	1000× 280
Max. loading capacity of rotary table	mm	100
T-slot NO. /width/distance of rotary table		3× 14× 63
Spindle speed range/step	r/min	66-4540/16steps
Main motor rated power	Kw	2.2(3HP)
Spindle hole taper		7: 24 ISO30
N. W	KG	1300
Overall dimension	mm	1540× 1340× 2130

Standard configuration
1)GSK980MDA CNC system
2)3# Turret Mill-head
3)Suit for Small parts of the high-precision, highly efficient automatic processing.
4)Fully functional
Optional configuration
HNC-18i/21MD,GSK-983M or KND-100Mi
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
