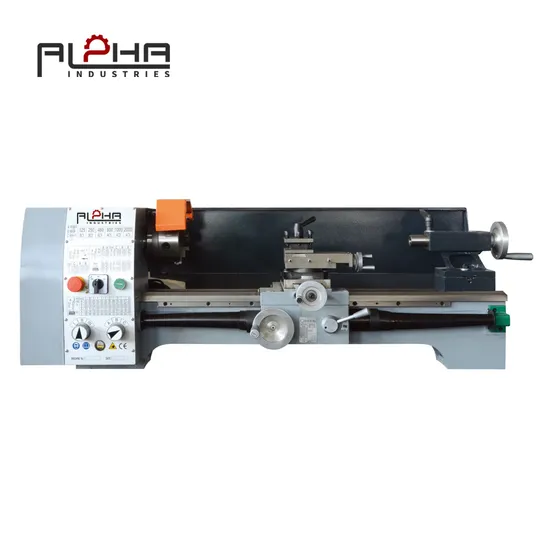

Manufacturers Sell Bq1022/Bq1126 Precision Gear Head Lathe at Low Prices

Product Description

• The bed way is hardened and ground. It features with super pome accuracy and well wear-resisting.

• The main spindle is mounted on 2 precision accuracy taper roller bearings.

• The hole through main spindle is 26mm and the highest speed for main spindle is 2000r.p.m.

• Changing speeds by belt, The machine can operate at low noise.

Product Parameters

Technical Parameters
Model No.	Unit	BQ1022	BQ1126
max.swing over bed	mm	254	280
max.swingover crosS slide	mm	156	182
max.length of workpieces	mm	550	660
taper of spindle bore		M.T.No.4	M.T.No.4
spindle bore		26	26
range of spindle speed	rpm	125-2000(50Hz)/125-2400(60Hz)	125-2000(50Hz)/150-2400(60Hz)
longitudinal feed per revolution of spindle	mm/rev	0.063-0.35	0.063-0.35
range of inch threads		8-72T.P.I(32kinds)	8-72T.P.I(32kinds)
maximum tool size	mm	0.25-3.5mm(18kinds)	0.25-3.5mm(18kinds)
range of metric threads	mm	12×12	12×12
dia.of tailstock sleeve	mm	32	32
taper of tailstock sleeve bore		M.T.No.2	M.T.No.2 or No.3
max. tarvel of tailstock sleeve	mm	65	65
motor power	kW	0.75(1HP)	0.75(1HP)
motor frequency	Hz	50 or60	50 or 60
packing size(LxWxH)	cm	140×57×56.5	140×57×63
N.W./G.W.	kg	150/2000	180/2300

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
