Product Details
Product Description
Product Description

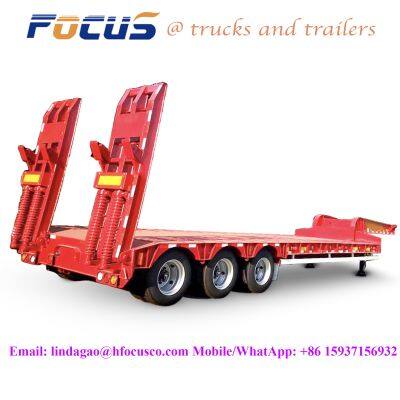

Different types of Lowbed Trailers for heavy equipment and special machinery
10M Low Flat Semi Trailer
| 12M Low Flat Semi Trailer
| 16M Low Flat Semi Trailer
| 16M Low Flat Semi Trailer
|
|
Dimension
| 10000*2500*1650mm
| 12000*3000*1650mm
| 16000*3100*1650mm
|
|
Main Beam
|
| T700 matirial "I" Section double web
|
Box
|
| Hardox or equal steel
|
Lifting Sys
|
| HYVA Brand
|
Suspenssion
|
| Mechanical / Air / Bogie
|
Axle
| 2-3 axles BPW/FUWA/PDME
| 3-6 axles BPW/FUWA/PDME
|
|
Rim
| 8/12 pieces 9.0-22.5 Steel
| 12-18 pieces 9.0-22.5 Steel
|
|
Tire
| 8/12 pieces 12R22.5 Bridgeston/
Triangle/Linglong
| 12-18 pieces 12.00R20 Bridgeston/ Triangle/Linglong
|
|
Brake Valve
|
| WABCO
|
Chamber
| 4/6sets T30/30
| 6-12 sets T30/30
|
|
Air Tank
|
| 28L
|
Brake Pipe
|
| Nylon Wire Pipe
|
FLATBED TRAILER GENERAL BRIEF
Container Locks: 4 to 12 locks for 1×20 Feet, 1×40 feet, 2×20 feet
Axles: World famous brand FUWA or BPW axles Or Chinese brand axles are optional
9-12-14-16 tons capacity, drum or disc option
Brakes: Wabco EBS or Wabco ABS brake system
Suspension: Air suspension, mechanical leaf spring suspension or bogie type suspension
Tires and Rims: Single or Double Tire, 385/60 R22.5 – 315/80 R22.5 – 12 R22.5 – 13 R22.5
King Pin: 2” or 3,5” king pin JOST or Chinese brand
Landing Gear: 25-35 Tons JOST or Chinese brand
Painting: Based on customer's requirement, pantone or RAL are available
Accessories: Tool box, spare tire carrier, water tank, fuel tank
>>
