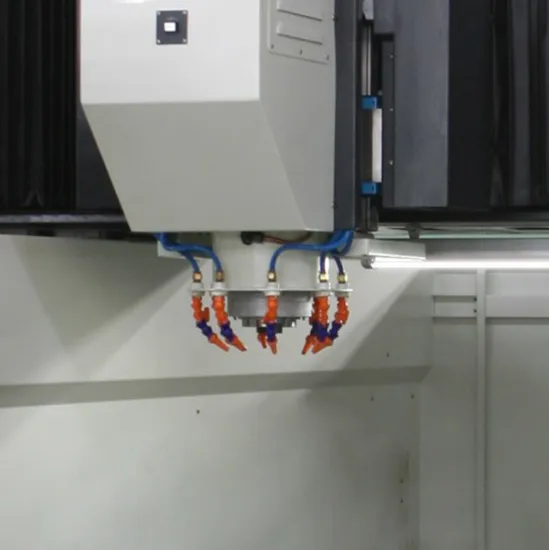

Professional CNC Gantry Milling Machine Center for Precision Machining

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
KDX1225
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
±0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
2500*1200mm
Granty Gate Width
1800mm
Max. Table Load
4000kg
X Travel
2500mm
Y Travel
1200mm
Z Travel
750mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
10 Sets/ Year

Product Description



ITEM		 KDX1225

Table

Table size		 2500× 1200 mm

Gantry gate width		 1800 mm

Max table load		 4000 Kg

Machining capacity

X travel		 2500mm

Y travel		 1200 mm

Z travel		 750 mm

Distance between spindle end and table		 200-950 mm

Spindle

Taper bore of spindle		 BT50

Max. spindle speed		 6000 rpm

Main motor power		 18.5/22 KW

Feed

X/Y/Z motor torque		 22x2/22/22 Nm

Feed rate

Rapid feed

X axis		 24 m /min

Y axis		 20 m /min

Z axis		 20 m /min

Repositioning accuracy

X axis		 ≤ 0.015 mm

Y axis		 ≤ 0.015 mm

Z axis		 ≤ 0.015 mm

Others

Coolant pump motor power		 960 W

Overall dimensions(LxWxH)		 4300x2930x3585 mm

Net weight		 17000 Kg

CNC brand		 FANUC
