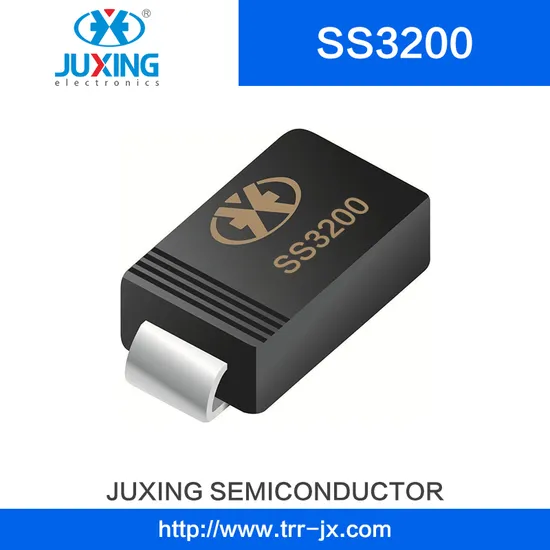

Juxing Ss3200 200V3a Ifsm150A Vf0.95A Surface Mount Schottky Rectifiers Diode with SMC

Product Description

Product Description chottky barrier rectifier diodes offer advantages such as low voltage drop, fast switching speeds, minimal reverse recovery characteristics, and compact size. These properties make them essential components in a wide range of applications requiring efficient rectification, fast switching, and reduced power losses.
Product Parameters

Type	VRRM	I(AV)	IFSM	VF@I(AV)		IR	TRR	Package
	V	A	A	V	A	uA	ns
SS12	20	1	25	0.55	1	500	-	SMA
SS14	40	1	25	0.55	1	500	-	SMA
SS16	60	1	25	0.7	1	500	-	SMA
SS18	80	1	25	0.85	1	500	-	SMA
SS110	100	1	25	0.85	1	500	-	SMA
SS1150	150	1	25	0.95	1	500	-	SMA
SS120	200	1	25	0.95	1	500	-	SMA
SS22	20	2	50	0.55	2	100	-	SMA/SMB
SS24	40	2	50	0.55	2	100	-	SMA/SMB
SS26	60	2	50	0.7	2	100	-	SMA/SMB
SS28	80	2	50	0.85	2	100	-	SMA/SMB
SS210	100	2	50	0.85	2	100	-	SMA/SMB
SS2150	150	2	50	0.95	2	100	-	SMA/SMB
SS2200	200	2	50	0.95	2	100	-	SMA/SMB
SS32	20	3	70	0.55	3	100	-	SMA/SMB/SMC
SS34	40	3	70	0.55	3	100	-	SMA/SMB/SMC
SS36	60	3	70	0.7	3	100	-	SMA/SMB/SMC
SS38	80	3	70	0.85	3	100	-	SMA/SMB/SMC
SS310	100	3	70	0.85	3	100	-	SMA/SMB/SMC
SS3150	150	3	70	0.95	3	100	-	SMA/SMB/SMC
SS3200	200	3	70	0.95	3	100	-	SMA/SMB/SMC
SS52	20	5	150	0.55	5	100	-	SMA/SMB/SMC
SS54	40	5	150	0.55	5	100	-	SMA/SMB/SMC
SS56	60	5	150	0.7	5	100	-	SMA/SMB/SMC
SS58	80	5	150	0.85	5	100	-	SMA/SMB/SMC
SS510	100	5	150	0.85	5	100	-	SMA/SMB/SMC
SS5150	150	5	150	0.95	5	100	-	SMA/SMB/SMC
SS5200	200	5	150	0.95	5	100	-	SMA/SMB/SMC
SS14L	40	1	35	0.45	1	100	-	SMA
SS16L	60	1	35	0.55	1	100	-	SMA
SS18L	80	1	35	0.75	1	100	-	SMA
SS110L	100	1	35	0.75	1	100	-	SMA
SS1150L	150	1	35	0.85	1	100	-	SMA
SS1200L	200	1	35	0.85	1	100	-	SMA
SS24L	40	2	50	0.45	2	100	-	SMA
SS26L	60	2	50	0.55	2	100	-	SMA
SS28L	80	2	50	0.75	2	100	-	SMA
SS210L	100	2	50	0.75	2	100	-	SMA
SS2150L	150	2	50	0.85	2	100	-	SMA
SS2200L	200	2	50	0.85	2	100	-	SMA
SS34L	40	3	80	0.45	3	100	-	SMA
SS36L	60	3	80	0.55	3	100	-	SMA
SS38L	80	3	80	0.75	3	100	-	SMA
SS310L	100	3	80	0.75	3	100	-	SMA
SS3150L	150	3	80	0.85	3	100	-	SMA
SS3200L	200	3	80	0.85	3	100	-	SMA
SS54L	40	5	110	0.45	5	100	-	SMA
SS56L	60	5	110	0.55	5	100	-	SMA
SS58L	80	5	110	0.75	5	100	-	SMA
SS50L	100	5	110	0.75	5	100	-	SMA
SS5150L	150	5	110	0.85	5	100	-	SMA
SS5200L	200	5	110	0.85	5	100	-	SMA
SS210L	100	2	50	0.6	2	100	-	SMB
SS34L	40	3	80	0.45	3	100	-	SMB
SS36L	60	3	80	0.55	3	100	-	SMB
SS38L	80	3	80	0.75	3	100	-	SMB
SS310L	100	3	80	0.75	3	100	-	SMB
SS3150L	150	3	80	0.85	3	100	-	SMB
SS3200L	200	3	80	0.85	3	100	-	SMB
SS54L	40	5	110	0.45	5	100	-	SMB
SS56L	60	5	110	0.55	5	100	-	SMB
SS58L	80	5	110	0.75	5	100	-	SMB
SS510L	100	5	110	0.75	5	100	-	SMB
SS5150L	150	5	110	0.85	5	100	-	SMB
SS5200L	200	5	110	0.85	5	100	-	SMB
SS82	20	8	175	0.55	8	175	-	SMC
SS84	40	8	175	0.55	8	175	-	SMC
SS86	60	8	175	0.7	8	175	-	SMC
SS88	80	8	175	0.85	8	175	-	SMC
SS810	100	8	175	0.85	8	175	-	SMC
SS8150	150	8	175	0.95	8	175	-	SMC
SS8200	200	8	175	0.95	8	175	-	SMC
SS34L	40	3	100	0.45	3	100	-	SMC
SS36L	60	3	100	0.55	3	100	-	SMC
SS38L	80	3	100	0.75	3	100	-	SMC
SS310L	100	3	100	0.75	3	100	-	SMC
SS3150L	150	3	100	0.85	3	100	-	SMC
SS3200L	200	3	100	0.85	3	100	-	SMC
SS54L	40	5	120	0.45	5	100	-	SMC
SS56L	60	5	120	0.55	5	100	-	SMC
SS58L	80	5	120	0.75	5	100	-	SMC
SS510L	100	5	120	0.75	5	100	-	SMC
SS5150L	150	5	120	0.85	5	100	-	SMC
SS5200L	200	5	120	0.85	5	100	-	SMC
SS12F	20	1	50	0.55	1	500	-	SMAF
SS14F	40	1	50	0.55	1	500	-	SMAF
SS16F	60	1	50	0.7	1	500	-	SMAF
SS18F	80	1	50	0.7	1	500	-	SMAF
SS110F	100	1	50	0.85	1	500	-	SMAF
SS112F	120	1	50	0.85	1	500	-	SMAF
SS115F	150	1	50	0.95	1	300	-	SMAF
SS120F	200	1	50	0.95	1	300	-	SMAF
SS22F/BF	20	2	50	0.55	2	500	-	SMAF/SMBF
SS24F/BF	40	2	50	0.55	2	500	-	SMAF/SMBF
SS26F/BF	60	2	50	0.7	2	500	-	SMAF/SMBF
SS28F/BF	80	2	50	0.7	2	500	-	SMAF/SMBF
SS210F/BF	100	2	50	0.85	2	500	-	SMAF/SMBF
SS212F/BF	120	2	50	0.85	2	500	-	SMAF/SMBF
SS215F/BF	150	2	50	0.95	2	300	-	SMAF/SMBF
SS220F/BF	200	2	50	0.95	2	300	-	SMAF/SMBF
SS32F/BF	20	2	80	0.55	2	500	-	SMAF/SMBF
SS34F/BF	40	2	80	0.55	2	500	-	SMAF/SMBF
SS36F/BF	60	2	80	0.7	2	500	-	SMAF/SMBF
SS38F/BF	80	2	80	0.7	2	500	-	SMAF/SMBF
SS310F/BF	100	2	80	0.85	2	500	-	SMAF/SMBF
SS312F/BF	120	2	80	0.85	2	500	-	SMAF/SMBF
SS315F/BF	150	2	80	0.95	2	300	-	SMAF/SMBF
SS320F/BF	200	2	80	0.95	2	300	-	SMAF/SMBF
SS52F/BF	20	2	150	0.55	2	500	-	SMAF/SMBF
SS54F/BF	40	2	150	0.55	2	500	-	SMAF/SMBF
SS56F/BF	60	2	150	0.7	2	500	-	SMAF/SMBF
SS58F/BF	80	2	150	0.7	2	500	-	SMAF/SMBF
SS510F/BF	100	2	150	0.85	2	500	-	SMAF/SMBF
SS512F/BF	120	2	150	0.85	2	500	-	SMAF/SMBF
SS515F/BF	150	2	150	0.95	2	300	-	SMAF/SMBF
SS520F/BF	200	2	150	0.95	2	300	-	SMAF/SMBF
SSL310BF	100	3	80	0.6	3	200		SMBF
SSL54BF	40	5	150	0.45	5	500		SMBF
SSL545BF	45	5	150	0.45	5	500		SMBF
SSL56BF	60	5	150	0.55	5	500		SMBF
SSL510BF	100	5	150	0.7	5	200		SMBF

Hot Products

Products Applications
Factory Profile
Warehouse
Certifications
FAQ 1. What main products does we sell?
We sells full range of diodes and bridge rectifiers. Our advantages are most complete line of low voltage drop schottky diode, TVS, ESD, Mosfet, big Bridges, Transistor.
2.How long is a quote valid for?
All prices quoted are valid for 30 days from the date of quotation.
3.What is payment terms?
We prefer pay in advance via TT,western union and Paypal(for small amount only).
4. How long is the production lead time?
* Most items we have stock of complete items;
* Most items we have stock of chips, lead time 2~3 weeks;
* Partial items have not stock of chips, lead time 4~5 weeks.
* once order confirmed, we can check the exact lead time then
5. What is the freight charge when we buy diodes from JUXING?
As freight will varies according to the size and weight of the parts, different location of customers, we will quote ex-work, freight to collect and paid by customer courier account of DHL,UPS, FEDEX. Or we will check the shipping cost and add it to the total amount customer should pay.
6. May I have some samples for testing?
We offer free samples for our customers and they only need to pay the freight for samples.
7. How to assure worldwide customers receive components in good quality and condition?
1st, with advanced manufacturing technology ensure product reliability;
2nd Strict quality control system, ISO registered;
3rd, We will provide data sheet for all components, and we prefer customer trial test our parts, volumn orders to be placed after trial test pass;
4th, Factory would check product 100% before delivery, and international safety packaging will be applied to ensure parts arrive at customer in good condition.

---
