Tmg-a1200 Automatic Squeegee Grinder Type Prepress Machinery

Product Details

Product Description

Product Description
Product DescriptionTMG-A1200 AUTOMATIC SQUEEGEE GRINDER TYPE
video: https://youtu.be/kPBGWd7p94c
Faster, more precise and uncompromising easy to handle

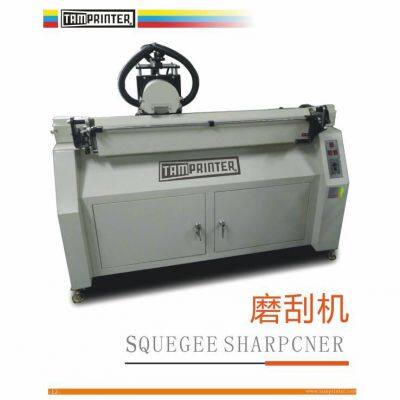

tamprinter Automatic Squeegee Grinder
Tamprinter-Squeegee Grinder
Automatically grinds printing squeegees of varying lengths by using a diamond-coated grinding disc and thus ensures a precise parallel grinding for the best possible printing results.
Standard features:
grinding by means of feed handwheel
electrically driven forward feed with the possibility to change the sense of rotation in advance motion
number of grinding operations - programmable
grinding wheel speed variable via potentiometer
pivotable squeegee holder to realize various grinding angles
angle adjustment is readable from scales
end of grinding feed traverse infinitely variable
integrated exhaust air blower
suitable to be used for all standard squeegee profiles
the squeegee rubber is clamped in a way to avoid any distortion
standard grinding lengths:
700 mm, 1000 mm, 1500 mm and 2000 mm
Machine Details

diamond grinding wheel enables exact parallel grinding.	suitable to be used for all standard squeegee profiles.	control panel for programmable operations.

Technical data:

Model	700	1000	1500	2000
max. grinding stroke	700 mm	1000 mm	1500 mm	2000 mm
grinding angle	0-45°	0-45°	0-45°	0-45°
speed of grinding wheel	57 mm/sec	57 mm/sec	57 mm/sec	57 mm/sec
squeegee rubber thickness	5-10 mm	5-10 mm	5-10 mm	5-10 mm
electrical supply	380 V 3phase	380 V 3phase	380 V 3phase	380 V 3phase
compressed air connection	6 bar	6 bar	6 bar	6 bar
Dimensions (w x d x h):	1360 x 600 x 1450 mm	1660 x 600 x 1450 mm	2160 x 600x 1450 mm	2660 x 600 x1450 mm
weight	ca. 180 kgs	ca. 200 kgs	ca. 230 kgs	ca. 260 kgs
