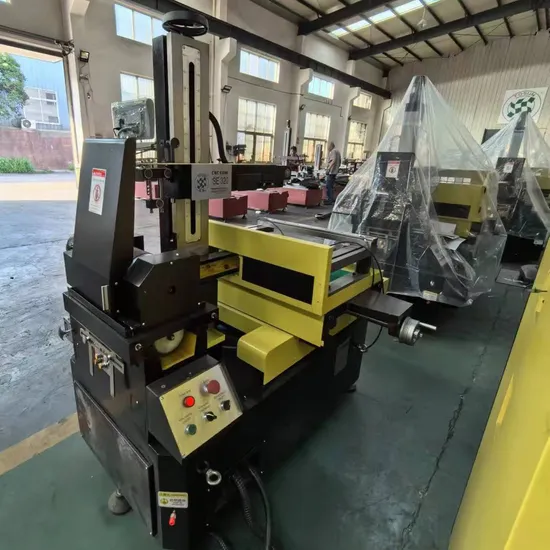

Spark Erosion Electric Discharge CNC Wire Cut EDM Machine DK7732 (Standard) is the perfect combination of high cutting efficiency and good cutting smoothness. It has the characteristics of stable processing performance, convenient setting of operation and setting, high precision and good consistency in processing.
The equipment is suitable for work piece processing with relatively high precision and roughness requirements. And the equipment is also suitable for processing molds.
| No. | Description | Unit | Specification |
| 1 | Max. Cutting Speed | mm²/min | 200 |
| 2 | Wire Electrode Diameter | mm | Φ0.10~Φ0.25 |
| 3 | Machining Precision (Cutting the octagon in 10mm) | mm | ≤0.012/Φ10, height<100 |
| 4 | Taper/Workpiece Height | | ±3°/100mm |
| 5 | Power Consumption | kw | 3 |
| 6 | Surface roughness | um | Single cut Ra<2.0
*Multiple cut Ra<0.8 |
| 7 | High pressure water tank | | Multi-stage filter system |
| 8 | Plastic water jet plate; Bronze spout | | |
| 9 | Control method of wire spool, cooling system | | Controlled by the program and the NC panel |
| 10 | Repeating position precision of X, Y-axis | μm | ±2 |
| 11 | Guide rail type | | Line guide rail |
| 12 | Speed regulation of transport wire tube | | Converter |
| 13 | Number of control axes | | 5 |
| 14 | Power Supply | | AC380V, 50Hz |
