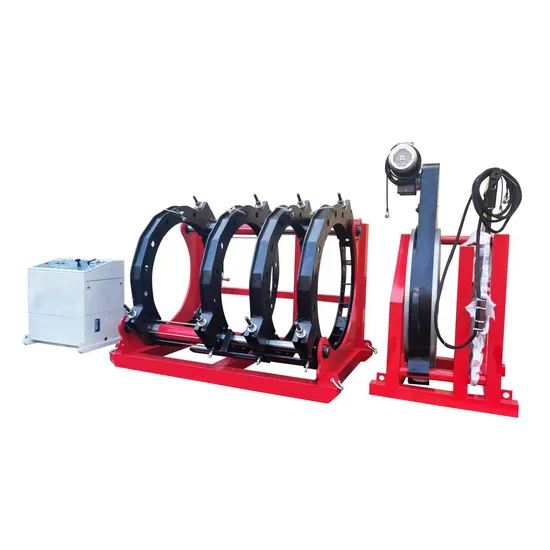

1200mm Big Size HDPE Pipe Butt Fusion Welding Machine/2024 New Model/Welding Machine of Pipe Fabrication/ Tube Welder/Termofusion Maquina

Product Description

Product Description 1. Versatility: The machine is designed to fuse HDPE pipes of different sizes, ranging from 800mm to 1200mm. 2. User-friendly: The machine is easy to operate, making it suitable for both experienced professionals and beginners. It typically includes clear instructions and intuitive controls, ensuring a hassle-free welding experience. 3. Durability: Made from high-quality materials, the machine is built to withstand harsh working conditions and heavy-duty usage. It is resistant to corrosion, wear, ensuring long-lasting performance and minimal maintenance requirements. 4. Efficiency: The HDPE butt fusion welding machine offers a fast and efficient fusion process. It typically has a high heating capacity, allowing for quick heating and cooling cycles. This reduces the overall welding time, increasing productivity on the job site. 5. Safety: The machine incorporates various safety features to protect the operator and prevent accidents. These may include automatic temperature and pressure control systems, emergency stop buttons, and safety interlocks. 6. Cost-effective: By providing reliable and durable fusion joints, the machine helps reduce the need for repairs and replacements, resulting in cost savings over time. Additionally, its efficiency and productivity contribute to overall project cost reduction.
Machine Real Shot
Company Profile
OUR MACHINES
EXHIBITION
Product Parameters

Model	HDC1200
Pipe size(mm)	800mm,900mm,1000mm,1200mm
Heating plat Max temp	270ºC
Temp deviation in surface(170-250)	±5ºC
Max tolerance of welding jointing	0.3MM
Max working pressure hydraulic station	16Mpa
Working voltage	380V
Working frequency	50-60HZ
Motor power/voltage of hydraulic station	2.2KW / 380V
Power/voltage of heating plate	18KW / 380V
Power/voltage of planning tool motor	2.2KW / 380V
Total Power	22.4KW
Overall weight of machine(kg)	3073KGS

Application& Features:
1.Consist of basic frame, milling cutter, heating plate, hydraulic unit, electric unit, support.
2.Working environment must be between -40ºC~+40ºC.
3.Pressure adjustable range: 0-16Mpa.
4.Heating plate Max. temperture: 270ºC.
5.Suitable for material of PE, PP, PVDF.
Good Feedback FAQ
Q:Are you manufacturer or trading company?
A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.
Q: How long is the delivery time ?
A: Depend on the quantity.
Q: What is your payment term?
A: Sample order :must be 100% in advance by T/T.
Bulk order :T/T ,30%deposit,70%against copy of B/L. deposit,70%against copy of B/L.
Q: Could i use my own brand ?
A: Yes ,welcome.
Q: Could you provide the after-sale service for the clients after buying your products ?
A: Yes, of course .we supply 24h after-sales service. after delivery, we will track the products for you once every two days,until you get the products. when you got the goods,test them,and give us a feedback. if you have any questions about the problem,contact with us, we will offer the solve way for you.
Q: Do you test all your products before delivery ?
A:Yes,all the products have to pass strict inspection before they go out !
Q: Can you produce base on our drawing &sample ?We may also need our logo on it ?
A :Yes,of course. we do OEM&ODM service. and definitely you can have logo on it.

---
