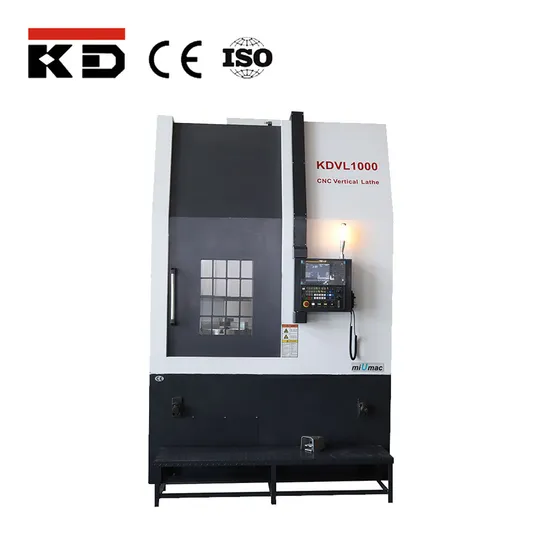

| MODELS | KDVL800 | KDVL1000 |
| CAPACITY | | |
| Max.cutting diameter for disc parts | Ф800mm | Ф1000mm |
| Max.cutting diameter for axle parts | Ф620mm | Ф650mm |
| Max.height of turning | 650mm | 800mm |
| SPINDLE | ||
| Spindle nose | A2-11 | A2-11 |
| Front spindle bearing inner diameter | Ф180mm | Ф220mm |
| Spindle speed range | 50-1800rpm | 50-1200rpm |
| Steps of spindle speed | 2 steps | 2 steps |
| Chuck diameter | 21″ | 21″ |
| TRAVEL | | |
| X axis | X: -60; +460mm | X: -50; +515mm |
| Z axis | 650mm | 900mm |
| FEED | | |
| Rapid feed of X axis | 12m/min | 12m/min |
| Rapid feed of Z axis | 16m/min | 16m/min |
| TOOL POST | ||
| Type of tool stsations | Hydraulic | Hydraulic |
| Tool number | 8 | 8 |
| Tool shank size(square) | 32×32mm | 32×32mm |
| Tool shank size(round) | Ф50mm | Ф50mm |
| MOTOR | ||
| Main motor | 22/26kw | 30/37kw |
| Hydraulic pump motor | 1.5kw | 1.5kw |
| Coolant pump motor | 370w x2 | 370w x2 |
| OTHERS | ||
| Overall dimensions(L×W×H) | 3060×3530×3350mm | 3320×2380×3750mm |
| Net weight | 11500kg | 14000kg |
