3/2 way direct acting multiple solenoid valve manifold

Product Details

Product Description

Product Description

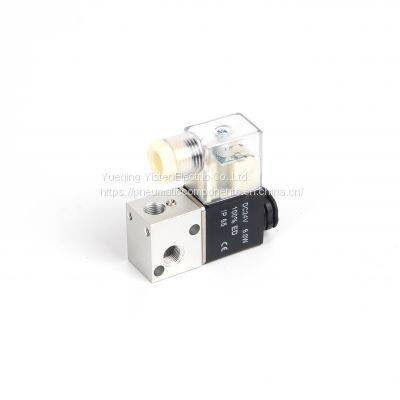

3/2 way direct acting multiple solenoid valve manifold
Order code for 3V1-M5
Solenoid valve Symbol for 3V1-06
Technical parameter

Model	3V1-M5	3V1-06	3V1-08
Fluid	Air
Acting	Direct acting
Valve type	3 way 2 position
Lubrication	No required
Temperature	-20℃~70℃
Port size	M5	G1/8''	G1/4''
Viscosity limit	Under 20CST
Pressure range	0-0.8MPa(0~100psi)
Proof pressure	1.5MPa(215psi)
Orifice size	Φ1mm
Material of body	Aluminum alloy
Dimension Response speed	<0.05s

Feature
.3V1-M5/06 solenoid air valve is made of high quality brass material, and durable in use
.This is direct acting type normally closed solenoid air valve, which is sensitive to change direction
.Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control
.The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate
.With solenoid operated for control appropriate flow and direction, provide great performance

---
