85kVA - 650kVA Diesel Electric Gensets with Volvo Penta Engine

Product Details

Product Description

Product Description

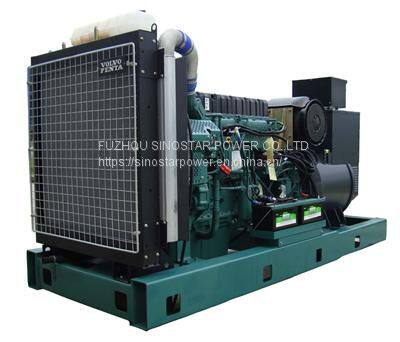

Diesel Electric Genset with Volvo penta engine

Product feature:
Engine:
-Engine:VOLVO water-cooled engine
-50HZ or 60HZ
-4,6,12 cylinders
-low fuel consumption
-Rated power factor:0.8(lagging)
-102/120,114/135,140/152,159/159mm bore/stroke
-standard starting method:24V electric starting
-cooling method: closed water-cooled
-lubricating methond:colsed lubricating
-stable governing rate=5%
-minimum oil consumptiong:=1.36g/kw.h
-minimum fuel consumption:=205g/kw.h
-Power range:-8kw-800kw
Alternator:
-Alternator:Stamford/Leroy sommer/KFG series brushless alternator
-CLASS H insulation
-IP22 protection
-self-regulator by AVR
-50hz or 60hz
-120-480V,3 phase,4line,pf.0.8
-electric system:24V
-wave distort:less then 10%
Soundproof/Silent box:
-Excellent ventilation
-oil tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF),LCD display.
-Four protection systems
-Emergency stop
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- Parallel system
- Remote system

Model	Frequency 50HZ		Engine Model
Model	Standby	Prime	Engine Model
SP-V94	94KVA	85KVA	TAD530GE
SP-V109	109KVA	110KVA	TAD531GE
SP-V142	142KVA	130KVA	TAD532GE
SP-V165	165KVA	150KVA	TAD731GE
SP-V206	206KVA	188KVA	TAD732GE
SP-V220	220KVA	200KVA	TAD733GE
SP-V275	275KVA	250KVA	TAD734GE
SP-V358	346KVA	325KVA	TAD941GE
SP-V415	412KVA	375KVA	TAD1343GE
SP-V450	450KVA	410KVA	TAD1344GE
SP-V500	506KVA	462KVA	TAD1345GE
SP-V550	550KVA	500KVA	TAD1641GE
SP-V670	660KVA	600KVA	TAD1642GE
SP-V700	700KVA	630KVA	TWD1643GE
Model	Frequency 60HZ		Engine Model
Model	Standby	Prime	Engine Model
SP-V275-60	275KVA	250KVA	TAD734GE
SP-V350-60	363KVA	330KVA	TAD1341GE
SP-V415-60	440KVA	400KVA	TAD1343GE
SP-V450-60	500KVA	455KVA	TAD1344GE
SP-V550-60	642KVA	570KVA	TAD1641GE
SP-V625-60	688KVA	625KVA	TAD1642GE
SP-V700-60	750KVA	688KVA	TWD1643GE
