Automatic Computer Control Paper Roll Sheet Cutter Machine / Paper Product Making Machinery

Product Description

Product Description

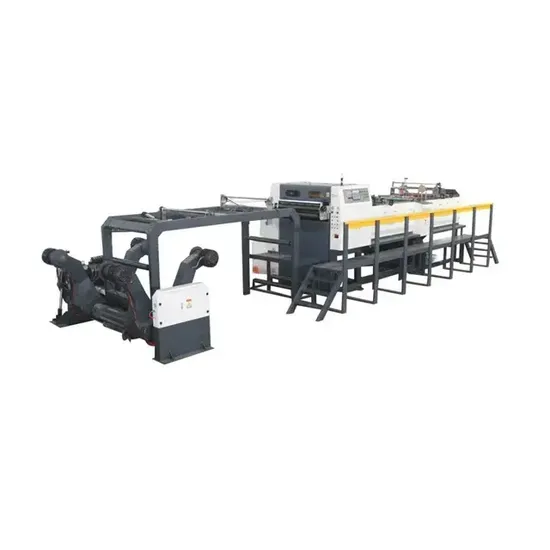

Automatic High Speed Paper Roll Sheet Cutter Machine

Technical parameters
Maximum paper roll diameter	1500mm
Maximum paper width	1420mm
Design speed	300m/min
Working speed	200-300mm/min (depending on paper conditions).
Cut value range	50-550g/
Cutting length range	450-2000mm
The paper collection height	1500mm
Crosscutting accuracy	+ 0.3mm
Square degree	+ 0.5mm

Description of equipment configuration 1. Stent system
1) double arm shaft less hydraulic support (two rolls of paper) 1 sets.
2) paper rolling rail cars. 2sets
3) balance adjustmentshaft 1 sets.
4) automatic tension control system 1 sets.
5) pneumatic multi-point brake 4 sets.
6) conical chuck 4 sets
2.correction system (customer selection)
1)automatic correction device (Taiwan gold medal) 1set (2level)
3. Feed system
1) reversedevice. 1 sets
2) press set 1 sets.
4. Paper cutting system
1) drum type cutting device (containing tungsten steel cross cutting knife) 1 sets.
2) paper feeding devices. 1 sets
5. Paper delivery system
1) quick delivery devices. 1 sets
2) overlapping feeding devices. 1sets
6. Stacking system
1) automatic counting marker device 1 sets.
2) automatic flush device 1 sets.
3) stack height automatic control device (automatic / manual) 1 sets
7. Walkways. 1sets Electrical appliances:
1) Kobe servo system inGermany. 1sets
2) Shanghai Futian motor. 1 set s
3) Taiwan delta inverter (7.5kW, 11kw) each 1 set.
4) Taiwan Yonghong PLC controller 1sets
5) Futian main frequency conversion motor (11kw) 1 sets
6) conveying motor (1.1KW) 1sets
7) the paper motor (0.75KW) 1sets
8) lifting motor (2.2kW) 1sets
The main automation control functions of the equipment.
1) automatic tension control system
2) automatic diagonal adjustment system
3) automatic counting function
4) automatic marking
5) automatic preset stop function
6) overload alarm function of motor
Equipment operation requirements
1) total power: about 22.5kW
2) power supply: 380V, 50-60HZ, three-phase four wire.
3) gas supply: hydraulic oil, air compressor 0.6, /min, 380V (buyer's own) Presentation: 1) random standard tools. 1 sets
Appendix: accessories brandlist
