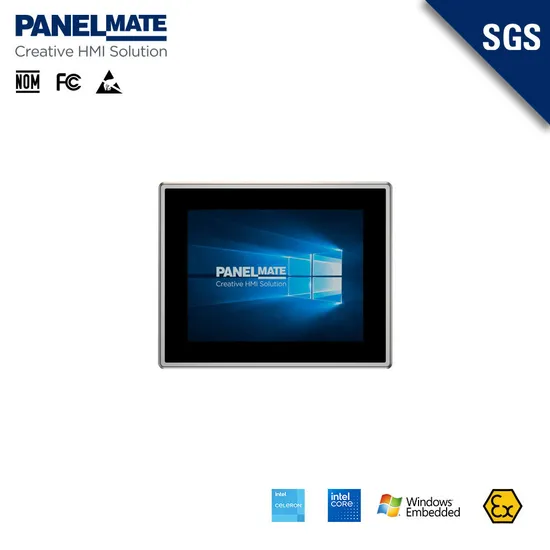

ATEX 12.1 Inch Industrial HMI Touch Panel All in One PC Codesys Fanless Ethercat Capacitive Touch Panel Explosion Proof Display Panel PC

US$1,230.00
1-9 Pieces
US$1,070.00
10+ Pieces

Basic Info.

Model NO.
IPC22121EX-4G-128G
CPU Type
Intel Celeron Processor 3855u
Hard Disk Rack Type
Partition
Operating Temperature
0℃ to 50℃
RAM
4GB
Screen Size
12.1 Inch
Storage Capacity
128GB SSD
System Expansion Slot
Mini PCIe
Touch Screen
Capacitive
Type
IPC
Resolution
1024X768
CPU
Intel Celeron Processor 3855u
Proportion
4:3
Luminance
350
Power
34W
Input Voltage
DC 9~36V
Material
Aluminium Magnesium Alloy
IP Level
Front Panel IP 65
Certification
II 3 G Ex Ec Iic T4 Gc
OS
Windows7, Window8, Windows10, Windows11, Linux, Et
Transport Package
Individual Carton Packing with Waterproof Film
Specification
58x50x29cm/G. W. 10kg
Trademark
Panelmate
Origin
China
HS Code
8471414000
Production Capacity
9999

Packaging & Delivery

Package Size
58.00cm * 50.00cm * 29.00cm
Package Gross Weight
10.000kg

Product Description

· Quality with ATEX certification · Screen size:12.1",15",15.6",18.5",19",21.5" · Front panel/back cover:Aluminium-magnesium alloy · Front panel/Rear:IP65/IP20 · Touchscreen mode:Multi-touch Capacitive screen · OS:Win7,Win8,Win10,Win11,Linux,etc(Intel® Celeron® J6412,Intel®Core™ 10th or above don't support Win7) · Intel® Core™ 6th/7th/10th/11th/12th/13th i3/i5/i7 series processors to optional · According to the different processor motherboards, equipped with rich interfaces · Extendable WIFI/4G · Power supply:DC 9~36V · Customized LOGO
