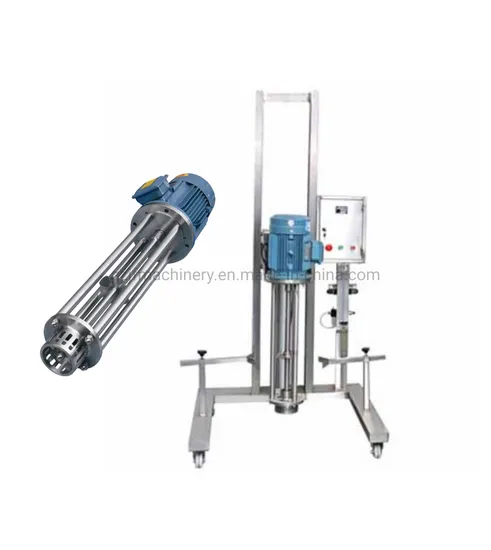

Movable Emulsifying Mixer Electric Lifting Type Homogenizer Cosmetic Cream Mixer Machine

Product Description

Movable Emulsifying Mixer Electric Lifting Type Homogenizer Cosmetic Cream Mixer MachineCharacteristicHomogeneous machine is mainly used for the field of biotechnology medicine field organization dispersed sample preparation, food industry enzyme treatment and in the pharmaceutical industry, cosmetics industry, paint industry and petroleum chemical industry etc.. The device adopts stainless steel system, can effectively separate body and the surface of the sample is included microbial homogeneous samples, samples were packed in disposable sterile homogeneous bag, not with the instrument contact, satisfied the fast speed, accurate result, good repeatability requirements.

Product name	Movable Pneumatic Lifting Homogenizer
Rotation speed	0-3000rpm
Lifting height	600mm
Air pressure	0.4Mpa
Motor power	2.2kw
Product advantages	Movable, easy to operate, stable operation

Working principle1.With precision of the rotor and the stator, a working head (stator and rotor forgings manufacturing) claw type structure,two-way suction, cutting high efficiency.
2.Intermittent type high shearing dispersion emulsifying homogenizer is through the rotor speed smooth rotation, the formation of high frequency, strong circumferential tangential velocity, angular velocity and other integrated kinetic energy.
3.Effectiveness: in the stator, rotor under the action, set reasonable narrow gap in the formation of strong, reciprocating hydraulic shear, friction, centrifugal extrusion, liquid flow collision comprehensive effect, materials in the container move in circles above process, obtain the final product.

Model	Power (kw)	Rise/fall height(mm)	Speed (R.P.M)	Mixing volume(L)	Impeller diameter (mm)	Weight (kg)
JFH-1.5	1.5	600	0-3000	10-50	Φ100	250
JFH-2.2	2.2	600	0-3000	20-60	Φ150	300
JFH-3.0	3.0	800	0-3000	20-100	Φ200	330
JFH-4.0	4.0	800	0-3000	20-100	Φ200	380
JFH-5.5	5.5	950	0-3000	50-300	Φ200	400
JFH-7.5	7.5	950	0-3000	50-300	Φ200	450

Feature
* JF Dseries of lifting speed dispersion machine is specialized for various viscosity liquid and
solid powder for low-speed mixing, dispersion, dissolution, mixing and high efficiency equipment.
* Can be arbitrarily selected by 220V or 380V voltage.
* Lifting adopts pneumatic and electric two forms.
* Easy operation, flexible movement, low noise, stable running.
Detailed Photos
Control panelEasy to operation,equipped with emergency stop switch, when the machine is running ,to avoid have an accident.
It is equipped with Delta frequency conversion speed control device, which can adjust different speeds according to the state of the product.Electrical componentsElectrical components adopt international brand,low operating failure,strong corrosion resistance.Homogenizing motorStable operation and flexible,can use continuously 24 hours above.High Shear Homogenizer MixerThis is full stainless steel homogenizer,electric lifting type.Homogenizing speed 1~3000rpm.The raw material is rapidly sheared in a short time, and the product exhibits an emulsification effect.Pneumatic High Shear MixerThis left side is high shear homogenizer mixer, product contact parts is stainless steel,but the frame is carbon steel. The right side is high shear disperser mixer,product contact parts is stainless steel,the frame is carbon steel.(can be customized)A variety of homogeneous head options
Pneumatic lifting type homogenizer and disperser
Homogenizer: Ultra-high-speed shearing of raw materials, so that the emulsifying effect of the product is better.
Disperser: It is suitable for mixing various products and can be used in food, cosmetics and pharmaceuticals. The mixing effect is good, the labor cost is reduced, and the product quality is improved.
Application
1)Stable operation, low noise, convenient cleaning, mobile and flexible, can be used continuously, for material can be ultrafine dispersion, emulsification. Can be widely used in industrial production of emulsification, homogenization and dispersion.2) Can make liquid in the crowded research. The strong impact and pressure loss expansion under three action to make the materialquality refinement of mixed. This equipment is an important equipment of dairy food. Beverage industry.3) Use for milk, soy milk and other kinds of dairy drinks, homogenized under high pressure, can make the fat globule significantlyrefined dairy liquid, make the products after eating easy digestion and absorption, improve the use value.4) Use for ice cream and other products of the production, can improve the liquid fine cleanliness and looseness, the intrinsic quality improved obviously.5) Use for emulsions. Glue. Juice. Slurry production, can prevent or reduce the material liquid stratified, improve the appearance of liquid material, which is more brightly colored, sweet degree more thick, taste more alcohol.
Company Profile
MATERIAL SOURCES OF PARTS80%of the main parts of our products are provided by world's famous suppliers. During long-term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.
FAQ
1. About Delivery termQ: What's the delivery term for doing business with you?A: EXW/FOB/CIF/DDU… it depends on preference of clients.
2. About Lead timeQ: What's the leading time after placing order?A: After getting your confirmation, mixing tank about 25 days, pump 15 days, colloid mill 10 days. However, it depends on production schedule is in slack or peak season, and the complication of machines.
3. About Payment timeQ: What's the payment term?A: T/T 40% as down payment, 60% balance payment before delivery.
4. About QualityQ: How do you control your quality?A: All machines before delivery will be tested and send video for customer, if no problem then arrange balance payment. Meanwhile,CE is available for customers' needs.
5. About PackingQ: How do you pack the machines?A: Standard export wooden case, to avoid damage during delivery.
6. About CustomizedQ: Can you produce according to the samples?A: Yes,we can produce by your samples or technical drawings.

---
