Hot Promotional 5 Axis CNC Router with Two Tables for 3D Sculpture

Product Description

Description

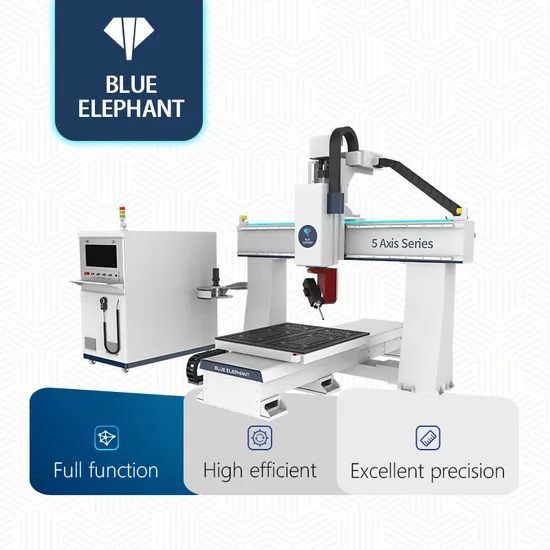

This small table 5 axis CNC router is an entry-level 5 axis CNC machining center for 3D woodworking projects. It's gantry beam is fixed but the small worktable is movable. So this 5 axis CNC router is good at carving and engraving various 3D molds, statues, and other items.
Features
1. It adopts the fixed-gantry and movable table structure, and the worktable can move back and forth during the machining process. This helps ensure that all side surfaces can be processed.
2. The 5 axis CNC router has powerful functions and stable performance. It can carve and engrave multiple non-metal materials and soft metal materials.
3. All parts and components adopt high-quality or world famous brand products to guarantee smooth operation and high processing quality. For example, Yaskawa servo motor and driver, Shimpo reducer, Syntec control system, etc.
4. Applicable materials include wood, EPS, resin, plaster and other non-metallic compound, and soft metals.
5. With a carousel tool magazine, this CNC router can change tools automatically, extending the processes and increasing work efficiency.
Technical parameters

Model		Omic 1212F
X,Y axis travel		1200X1200mm
Z axis travel		500-700mm
Spindle type		10kw-12kw water cooling ATC spindle,24000RPM
Inverter type		15kw Taiwan Delta inverter
Tool magazine		Carousel tool changer with 8/12pcs magazine
Tool holder with collet		HSK F63 tool holder
Control system		Syntec 610-E5 5 axis control system with RTCP functions
Driving system		X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors
Reducer		Japan Shimpo
Machine structure		Heavy duty body with quenching treatment
Work table		Removable working table
Linear guide		X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide
Transmission		X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300
Lubrication system		1.5L automatic lubrication system
Tool calibration		Automatic tool sensor calibration
Compatible software		Powermill software
Command language		G Code
Traveling speed		80m/min
Working speed		0-60m/min
Working voltage		380V 3PH 50HZ/ 60HZ(220V for option)

Application: 1, Mold industry: various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, and wooden mold train
2, Instrument industry 3-d surface engraving and shape cutting of large-scale instruments
3, sign, plastics, wood, molds, etc
4, Furniture, general woodworking manufacturing
Exhibition
Certifications
Our Service
Company Profile
Packaging & Shipping
Our service
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Why are our products so welcome among customers all over the world?
1.Our company has more than 10 years' experience in manufacturing cutting and engraving cnc router machine.

2.Our machine has achieved CE,FDA,CIQ,which ensures the quality and its longer life time makes customers feel at ease to use it.

3. Reinforced and thickened machine body makes transportation absolutely safer.
FAQ:
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminum, Copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easliy, so welcome to visit to our factorv.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to payd the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non- Standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
Welcome to contact us and visit our factory!
Manager : Jack
