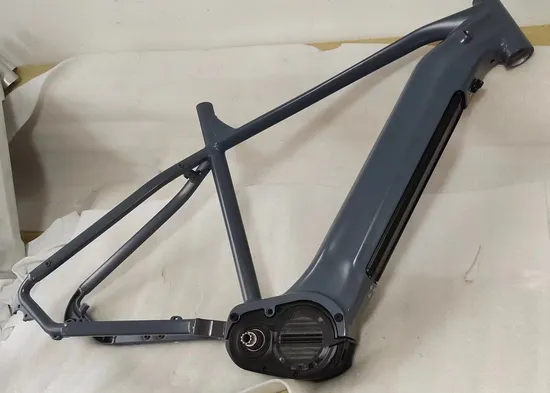

Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame

Product Description

Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame
Features:
1) Riding Style: Hardtail Trail/Am E-Bike Frame,Slope Headtube Angle 67 degree with Fork Appicable: 120-160mm Applicable.
2) Motor Applicable: Bafang M600/G521 Mid-Drive Motor.
3) Integrated Downtube for hiden Battery pack 52 or 65 cells optional.
3) 27.5 Boost Wheel Size Max. tire 27.5x2.80 or 29x2.35 intensified with Forced Yoke.
Wide Tire increases the riding stablitity.
4) Bafang Motor and Battery Pack or Box can be supplied with the frame for easy assembly.
Technical Data:

Model:	LDE6035
Material	Aluminum Alloy 6061, T4 &T6
Welding	TIG+Smooth Welding
Wheel Size	29er/ 27.5+
Motor	Bafang M620/G521 Ultra 1000w mid-drive motor
Battery	Integrated downtube for 70 cells
Size	16", 18", 20"
Dropout	148x12 thru-axle
Max. Tire	29"x2.35 or 27.5x2.80
Headset	Tapered(44-56mm)
Routing	Inner Cable routing
Head tube angle	67 degree
ChainStay	440mm
Brake	Disc (post mount)
Seatpost	30.9 mm
Type	Hardtail Trail/Enduro E-bike
OEM	Acceptable

Geometry:
Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame
Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame
Bicycle Accessories E-Bike Bafang 1000W Aluminum Frame
Terms & Conditions:
Warranty: 2 years (All Frames have VIN number)
Packing: 4 units/Carton
Lead Time: 45-60 days after order confirmation.
Payment Terms: 50% deposit and balance to be paid before shipment.
Sample Order: Acceptable
MOQ: 50 units.
Customized Painting: Acceptable.

---
