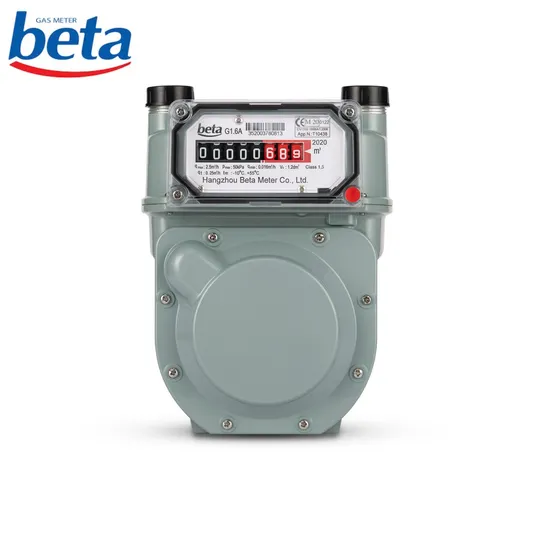

Domestic Ga Small Case Aluminum Gas Meter

Product Description

Product Description
1. PRODUCTS ADVANTAGES
2. PRODUCTS' SPECIFICATIONS

ITEM	UNIT	MODE
		G1.6(A)	G2.5(A)
Nominal flow-rate	m3 /h	1.6	2.5
Maximum flow-rate	m3 /h	2.5	4
Minimum flow-rate	m3 /h	0.016	0.025
Total pressure loss	Pa	≤ 200
Operation pressure range	kPa	0.5~30
Cyclic volume	dm3	0.8
Permissible error	Qmin≤ Q< 0.1 Qmax	± 3%
	0.1Qmax≤ Q≤ Qmax	± 1.5%
Min. recording reading	dm3	0.2
Max. recording reading	m3	99999.999
Operation ambient temperature	ºC	-10~+40
Storage temperature	ºC	-10~+50
Service life	Year	10(Natural Gas)
Connection thread	mm	M30 or by customer

3. DIMENSIONS(mm)
Detailed Photos

Home

Products

About us

Solutions

Contact us

Production Process
Packaging & Shipping
Company Profile
Hangzhou Beta Gas Meter Co. Ltd was established in 1998, and it was merged by
Holley Metering Ltd in 2002, Holley Group has reformed the shareholder structure
of Beta and implemented managerial stockholding since 2006.
Beta has more than 10 years experience in the gas metering field and now it has
around 150 employees including 30 staff in R&D department. Beta's product
series including normal domestic gas meter, IC card prepaid gas meter, remote
reading smart gas meter, IC Card & GPRS commercial gas meter, all series
gas meter has both steel case and aluminum case as diversified options, for the
purpose of satisfying customized demands.
In 2009, domestic diaphragm gas meter produced by Beta was successfully passing the approval of EN1359 standard, and furthermore Beta gained the MID D Certificate in April 2011, now the diaphragm gas meters export to Cuba, Czech,
Russia, Turkey, Italy, Greece, Chile, Bolivia, Taiwan, Spain, Malaysia and Tunisia
etc. countries, and serves to 200 more gas companies in Chinese market.
Beta factory has moved to Holley Group manufacturing base in 2007 and
production capacity up to 700,000 units per year. The mission of Bata is "Provide
high quality measurement service, grows with customer together." and vision is
"Innovate development, create value." Certifications
4. CERTIFICATES
5. QUALITY CONTROL
6. BRAND HONOR
7. EXHIBITIONS
Our Advantages
FAQ
1.Q: Why Beta?
A: Started from 1998, we are leading gas meter provider who you can trust. In 2009, domestic diaphragm gas meter produced by Beta was successfully passing the approval of EN1359 standard, and furthermore Beta gained the MID D Certificate in April 2011, now the diaphragm gas meters export to Cuba, Czech, Russia, Turkey, Italy, Greece, Chile, Bolivia, Taiwan, Spain, Malaysia and Tunisia etc. countries, and serves to 200 more gas companies in Chinese market.
2.Q: MOQ?
A: Generally starts from 100pcs, depending on products.
3.Q: Sample provided?
A: Yes, you can require sample before placing bulk order.
4.Q: Lead time?
A: 30 days.
5.Q: Delivery terms?
A: FOB, CIF, etc.
6.Q: Payment terms?
A: 30% pay against PO, remaining 70% shall be paid after shipment ready.

---
