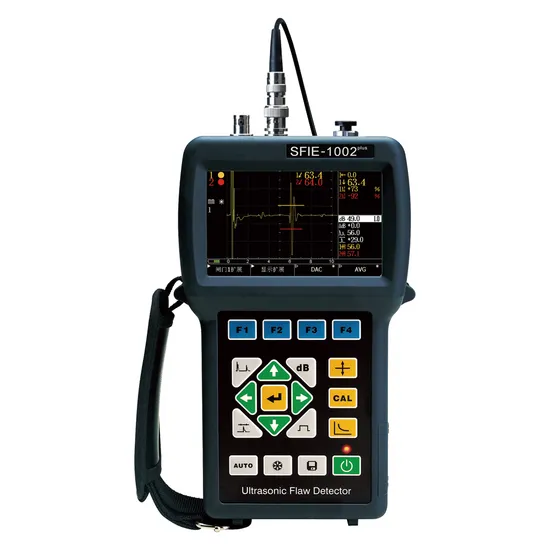

Handy Ultrasonic Flaw Detector The SFIE-1002Plus is a light-weight instrument with excellent performance which accumulates the experiences of 50 years for making ultrasonic instruments. This instrument is EN12668-1:2010 compliance and has an industrial-leveled TFT display with full WVGA(800×480) resolution providing superior visibility in all lighting conditions, including direct sunshine. Weighing only 0.9kg, square wave excitation, full WVGA resolution TFT display and strong flaw detecting capabilities make it superior when compared with other similar products.
| Specification |
| Attenuator Error | Per 12dB ±1dB |
| Equivalent Input Noise | <80×10 -9 V/√HZ^ |
| Pulse Type | -ve square wave, Tv: 25~250V ; tunable with 25V per step |
| Working Modes | T\R ; T&R |
| Damping | 400\80 Ohm |
| Working Frequency | W\N Band, W: 0.5~20MHz; N: 1.5~3MHz |
| Gain | 0.0~110.0dB; 0.1\1.0\2.0\6.0 dB per step; smart speed-up at 0.1dB |
| Material Velocity | 1000~15000m/s tunable; preset 30 optional |
| Display Reachable | 0.0~10000mm LW at steel velocity tunable with min 0.1mm per step |
| Rectification | Positive, Negative, Full, RF |
| Gate & Alarm | Dual gates, hardware driving real-time alarming; |
| Alarming condition: excess\loss\ DAC; Alarm mode: sound ; |
| Spotting: peak |
| Display | TG, TFT 5.6 inch WVGA color display, resolution 800×480 |
| Pulse Shift Range | -7.5~3000μs |
| Probe Delay Available | 0~999.9μs |
| PRF | 25~800Hz, auto adaptation |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.2% |
| Sensitivity Surplus | ≥60dB (200Φ2 FBH) |
| Discernibility | ≥36dB (mated with 5MHzΦ14 transducer) |
| Dynamic Range | ≥32dB |
| Rejection | (0~90) %, without any dent to linearity or gain |
| NL | <10% |
| Ports | BNC probe connector |
| USB HOST |
| Power Supply | Large-capacity Li battery without memory effect; battery life: 8+ hrs; |
| In-built battery charger (independent charger optional); AC: 220V |
| Dust\Splash\Water Proof | IP54 |
| UT Standards | Compatible with EN12668-1 |
| Meets JB/T 10061-1999 |
| Ambient Temperature | -30~50°C |
| Relative Humidity | 20%~95% |
| Weight | Around 0.9kg (with battery & in-built charger) |
| Dimension | Upper Part: 215mm×126mm×53mm |
| Lower Part: 215mm×104mm×42mm |
