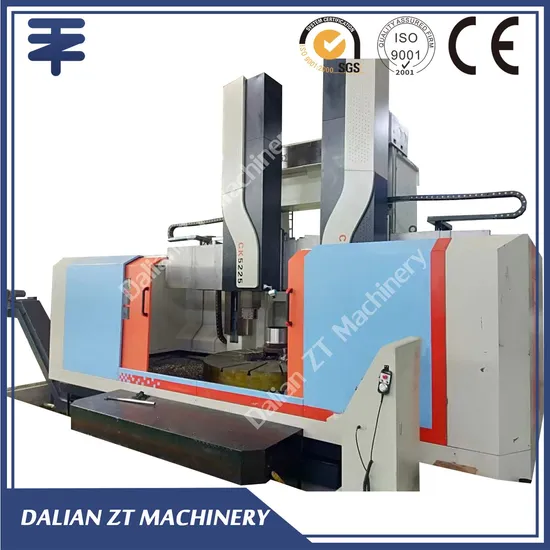

Large & Heavy Vertical Turning CNC Lathe Worktable Diameter 2500mm

Product Description

Features: Workpiece height 2000mm;
Max. workpiece weight 16T;
Worktable diameter 2250mm;
Right tool post is controlled by CNC controller, ram section 240*240mm; vertical travel of ram 1250mm;
Workpiece: Valve, pump, auto parts; ring, flange, shell parts
Function: Turning, grooving, drilling, tapping, reaming

Specification	Model Unit	CK5225H
Max turning diameter	mm	2500
Max height of workpiece	mm	1800
Max weight of the workpiece	t	15
Table diameter	mm	2250
Table speed step		4 ranges; stepless in each range
Worktable speed range		2-63r/min
Max torque of table	KN.m	63
Right tool post (CNC control)
Rapid feed of right tool post	mm/min	2000
Right tool post feed step		stepless
Right tool post feed range	mm/min	0.1-1000
Horizontal travel of right tool post	mm	-20-1500
Vertical travel of ram in right tool post	mm	1250
Ram section of rapid tool post	mm	240*240
Right tool post shank section	mm	40*50
Max. cutting force of right tool post	N	35000
Left tool post (PLC control)
Rapid feedratio of left tool post	mm/min	2000
Feedratio steps of left tool post		stepless
Feed range of left tool post	mm/min	0.1-500
Horizontal travel of left tool post	mm	-20-1500
Swivel degree of left tool post	°	±30
Vertical travel of left tool post ram	mm	1250
Ram section of left tool post	mm	240*240
Left tool post shank section	mm	40*50
Max. cutting force of left tool post	N	28000
Travel of cross beam	mm	1650
Lift speed of cross beam	mm/min	350
Main motor power	kW	55

PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
