Product Details
Product Description
Product Description
Horizontal beer tanks, called also service tanks, tanks for finalized beverage, or BBT bright beer tanks. The serving tanks with PUR insulation are cooled using water or glycol that circulates inside duplicators (cooling channels inside a double steel jacket).
Description
Horizontal beer tanks, called also service tanks, tanks for finalized beverage, or BBT bright beer tanks. The serving tanks with PUR insulation are cooled using water or glycol that circulates inside duplicators (cooling channels inside a double steel jacket).
Bright tanks must be engineered to be cold and hold pressure, sometimes act as BBT - Beer storage tanks, cylindrical pressure beer tanks horizontal bright beer tank serving tank for microbreweryBBT, Bright Beer Tanks, cylindrical pressure tanks, serving tanks, beer final conditioning tanks, beer storage tanks these are the most common terms, including the same class of special pressure vessels designed to preparation of carbonated beer before its bottling, filling into kegs or other containers. Purified carbonated beer is pushed from lager beer tanks or cylindrically-conical tanks into pressure storage beer tank.

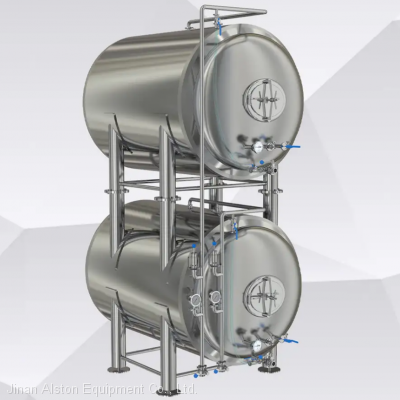

Horizontal bright beer tank
Horizontal Bright Beer Tank Standard Details
1. Total volume: 1+20%, Effective volume: requirement, dish head and cylinder tank;
2. Inside surface: SS304 or SS316, TH: 3mm. Inner Pickling passivation.
Outside surface: SS304 or SS316, TH: 2mm.
Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.
3. Manhole: side manhole on cylinder, bigger one .
4. Design pressure 4bar, Working pressure: 1.5-3.0bar.
5. Cooling method: Dimple cooling jacket cylinder.
6. Cleaning system: Fixed-round rotary cleaning ball.
7. Control system: PT100 for temperature test.
8. Carbonation stone device.
With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, sanitary sampling valve, breath valve, drain valve, and level display etc.
9. Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;
10. Complete with associated valves and fittings, the Hops adding device.
>>
