Lithium Ion Battery Electrode Punching Machine for Coin Cell

Product Description

Lithium Ion Battery Electrode Punching Machine For Coin Cell

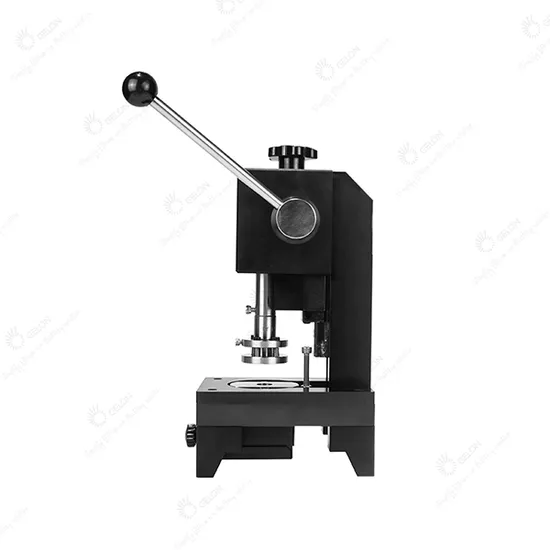

Coin cell punching machine GN-CP20 is a precision disc cutter with max. the pressure of 600kN. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil < 0.3 mm (such as Cu and Al) or separator film (<30um). The resulting discs can be used as electrode/separator discs of the split test cell and coin cell for battery researchers. Picture:

Pressure	600KN	Die cutting accuracy	±0.1mm
Max. Stroke	40mm	Die cutting burr height	≤0.02mm(can not pierce the diaphragm)
Size	23*19*45cm	Weight	26kg

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.

---
