US$18,845.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Knee-and-Column Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
CE, ISO 9001
Name
Vertical Miling Machine
Spindle Speed Step
18 Steps
Table Travel
900X315X385mm
Table Feed
23.5-1180/15-786/8-397
Mill Head Swivel
45degree
Transport Package
Plywood Cases, Plastic Cover Inside.
Specification
CE, ISO9001
Production Capacity
150 Sets/Month
Product Description

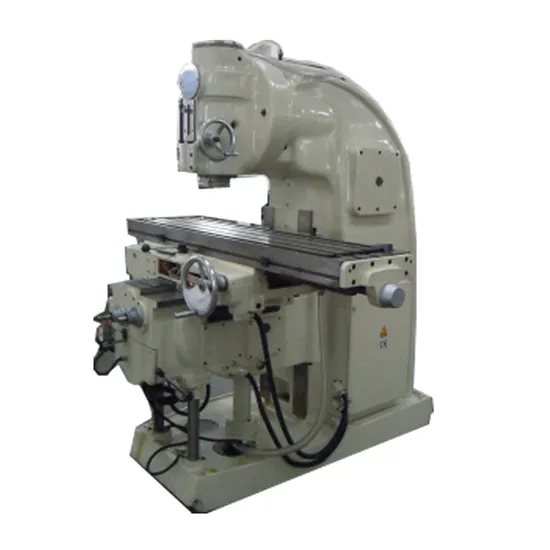

China universal Vertical Metal Milling Machine for sale
Main features:
1. Universal milling head
2. Multi-purse function
3. Rotary worktable
4.3-axis auto-feeding
Standard accessories:
Drawbar 1set
ISO50 Mill chuck 4, 5, 6, 8, 10, 12, 14, 16 8 pieces/set
ISO50 Cutter arbor Cutter arbor φ 40 1 piece
7: 24 The middle set of 7: 24
ISO50/MS4 1piece
Oil gun 1 piece
Inner hexagon spanner 6 1 piece
Double-ended wrench 17x19 1 piece
Double-ended wrench 22x24 1 piece
Double-ended wrench 27x30 1 piece
Double-ended wrench 32x36 1 piece
Single head spanner 14 1 piece
Single head spanner 50 1 piece
Inner hexagonal wrench 5 1 piece
Inner hexagonal wrench 8 1 piece
Inner hexagonal wrench 10 1 piece
Optional accessories:
Universal dividing head 125A Include three-jaw chuck
Universal dividing head 160 Include three-jaw chuck
Swivel table φ 320 Manual
Indexable carbide mill tool φ 63 With shank
Indexable carbide mill tool φ 100 No shank
Indexable carbide mill tool φ 160 No shank
Sizing block 240x120 6 pieces/set
Clamping kit
Milling chucks 15pcs
Specification |
Unit |
X5040 |
Table size |
mm |
400X1700 |
T-slots(NO./Width/Pitch) |
|
3/18/90 |
Longitudinal travel(manual/auto) |
mm |
900/880 |
Cross travel(manual/auto) |
mm |
315/300 |
Vertical travel(manual/auto) |
mm |
385/365 |
Rapid feed speed(X/Y/Z) |
mm/min |
2300/1540/770 |
Max. load |
kg |
800 |
Table feed range(X/Y/Z) |
mm/min |
23.5-1180/15-786/8-394 |
Spindle speed range |
r/min |
30-1500 |
Spindle speed step |
steps |
18 steps |
Stroke of spindle quill |
mm |
85 |
Max.swivel angle of vertical milling head |
|
±45° |
Distance between spindle nose and table surface |
mm |
115/500 |
Power of spindle motor |
kw |
11 |
Overall dimensions(L×W×H) |
mm |
2556×2159×2258 |
Net weight |
kg |
4250/4350 |
>>
