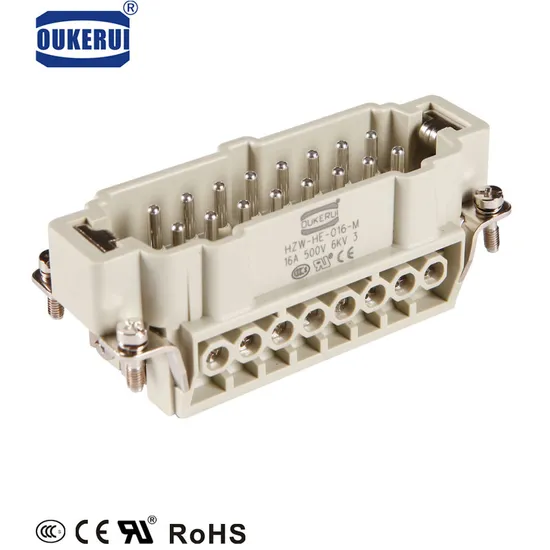

Hot Selling 16 Pins, Widely for Hot Runner Use Replace Harting, Heavy Duty Connector

Product Description

1.We keep a frequency of being on various professional trading shows each year including domestic fairs and international ones.
2.More than ten years accumulated manufacturing expertise only for creating a single product-----Heavy Duty Connector and as always, to create more value for our business partners as well as our terminal users.
3.As industrial 4.0 version is going on and on, our products are becoming more and more popular by offering different electrical connection solutions for your electrical facilities from traditional machines to more hi-tech robotics and automation control systems. 4.A reliable quality forges the value of OUKERUI brand.


Exploded view of Oukerui HDC Connectors

SPECIFICATION
Model No.	HZW-HE-016M	Gender type	Male
Pins	016+PE	Contacts' surface processing technical	Silver or Gold Plated
Terminal type	Crimp Terminal	Mounting type	Bulkhead/Surface/ cable to cable
Housings material	Dia casting aluminum alloy	Insert Block	Top grade PC
Working Voltage	500V	Working Current	16A
Rated Impulse Voltage	6KV	Temperature Bearing Range	-40ºC~+125ºC
International protection(IP) grade	IP65	Pollution Degree	3
Flammability	V0	Working Voltage Acc to UL/CSA	250V
Mechanical Life Span	Min 500 times	Trademark	Oukerui
Warranty	1 Year	Transport packing	Carton
Origin	China	HS code	8530900000
SPECIFICATION OF CONTACT
Material	Copper Alloy	Surface Treatment	Silver/Gold Plated
Terminal	Screw/Crimp Terminal	Wire Gauge	0.10-2.5mm2(AWG26-14)
Screw terminal tightening	0.5Nm	Stripping length	7-9mm
