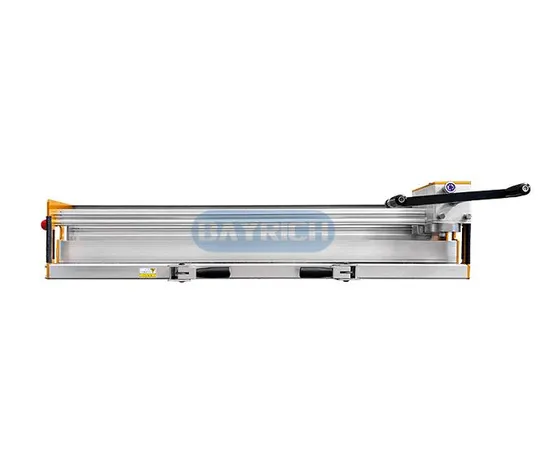

Conveyor Belt Lacing fastener Splice Clipper Machine

Product Description

The vulcanization of conveyor belts - whether hot or cold-is a time-consuming process that requires special skills, expensive equipment, extreme accuracy in the cutting and stripping of belt ends, and a thorough knowledge of solvents, bonding materials, and compatible cover and fill materials.
Mechanical Belt Fastening involves the use of mechanical belt fasteners (also called conveyor belt lacing). Mechanical belt fasteners combine strength and durability with affordability and easy installation.
★Features
1.Fastner Joint Tools Easy to do the repair-work,change it easily
2.Rotate the handle to operate ,no need wait heating and cooling.
3.Light weight and suitable for any position.
4.only needs a simple operation to connect the wide belt, and it can get the same effect as our other products, and it is economical and practical.
5.Teeth embed lengthwise in the belt, providing a strong, vice-like hold.
★Technical Datasheet

Model	SC350	SC600	SC900	SC1200	SC1500
N.W.(KG)	13	17	22	27	39
G.W.(KG)	19	23	31	39	55
Dimension(mm)	630*347*370	930*347*370	1230*347*370	1530*347*370	1830*347*370

★Maintenance
It's a relatively sophisticated mechanical equipment, and strengthening maintenance and maintenance has a decisive impact on its service life.
1.When moving, please handle it with care to avoid deformation of the rack.
2.Before the machine is used, the half-circle groove on the guide rail and the working surface of the pressure roller should be kept clean to ensure that the binding is lighter and smoother.
3.After each work, the body should be wiped clean, put back in the packing box, and stored in a dry place.
4.Heavy objects are not allowed to pile up on the guide rail to prevent the parts from being deformed and affecting the use.
________________________________________________________________________________________________
In light-duty applications like agriculture, parcel handling, food, and laundry, fasteners are available in hook and lacing styles, are installed into both ends of the belt, and are joined together with a hinge pin. Installation methods vary from machine application to using hand tools, and the fasteners are available in a variety of metals, plastics, and in some cases, food-grade materials.
Choosing the proper mechanical belt fastening system is one of the most important steps in splicing a belt.
★GS Fastner Datasheet

Model	Belt Thickness	Roller Min.Diameter	Quantity
CX1-SP	1.6-3.2mm	51	12pcs/Box
CX1	3.2-4.0mm	51
CX1LL-SP	1.6-3.2mm	76
CX1LL	3.2-4.0mm	76
CX2A-SP	3.2-4.0mm	76
CX2A	4.0-4.8mm	76
CX3	4.0-4.8mm	76
CX3-SP	3.2-4.0mm	76
CX3-LP	4.8-5.6mm	76
CX4	5.6-6.4mm	102	8pc/Box
CX5	7.1-7.9mm	127
CX6	7.9-9.0mm	152	6pc/Box
CX7	9.0-10.0mm	175

★LY Buckle Datasheet
Conveyor belt wolf tooth (LY) buckle, products are widely used: textile printing and dyeing dryer drying room mesh belt, KD, TMT series can steamer, pre-shrinker and other mesh belts, industry belt for vertical heat sealing machine, sealing and cutting for packaging industry belt for machine and high-speed sealing machine Conveyor belt for garment industry lining press ironing machine, special conveyor belt for food processing (such as pure cotton, PVC, PU, ) antistatic conveyor belt for thermal lamination machine Adhesive tapes and silicone-coated seamless belts Refilling machine belts for wood processing industry, doffer conveyor belts and other special belts for textile industry Screen printing Anti-ultraviolet drying mesh belts Detergent (chemical) processing industry conveyor belts Tobacco processing lines conveyor.
The wolf tooth buckle is a new generation of patented products developed by technicians on the basis of the introduction of German production technology and combined with the use of conveyor belt buckles in my country. The product has reasonable design and beautiful appearance, and is suitable for high-strength conveyor belts. The advantage is that the connection strength is high, the tensile strength is high, and high-quality imported steel with different thicknesses is used. Not only is it suitable for new belts, but also the old belts that have been stretched and thinned can be used repeatedly, reducing costs and improving efficiency.

Model	Belt Thickness	Roller Min. Diameter	Quantity
0#	-----1.5mm	26	8pcs/box,with 4pcs pin
1#	1.5-2.5mm	40
7#	2.5-3.5mm	50
15#	3.0-4.0mm	60

★2LY Buckle Datasheet

Model	Belt Thickness	Roller Min. Diameter	Quantity
X0	1.0-2.0	35	8pcs/Box,with 4pcs pin
X1	1.8-2.6	40
X1S	1.8-2.6	50
X7	2.4-3.6	50
X7H	2.4-3.6	50
X15	3.0-4.0	70

★Machine Detail

Machine Holder	Belt Clamp
Fixed Wire Rod	Buckle

★Accessories Part for Free

Mold -- 4pcs	Packing

★FAQ
Q1--What's the difference between GS Fastner,LY Buckle and 2LY Buckle?
A1--The LY buckle is formed by a steel belt at one time, with a flat shape, relatively better toughness and better compressive capacity; the GS steel wire fastner is quenched and welded, round, and relatively less compressive.
Q2--How does the machine work for different thickness belt?
A2--We will send the machines with 4pcs fastner mould,you can choose the right mould with fastner to diffferent thickness belt according to the above list to belt thickness in detail.
Q3--Does the machine come with the fastner together?
A3--Machine is the machine with 4pcs fastner mould,you need to buy the fastner separately.

---
