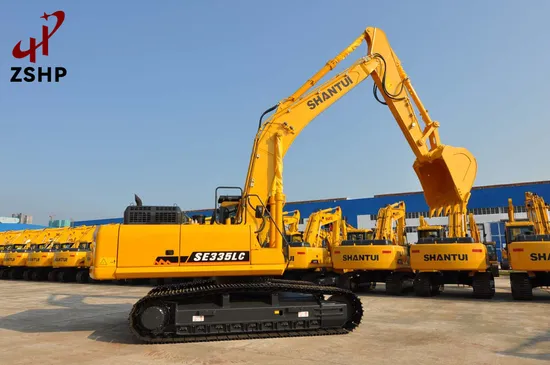

New Shantui 34 Ton Hydraulic Crawler Excavator Se335LC with Parts

Product Description

Product Description
Shantui presently boasts nearly 30 years of production history since the manufacturing of first excavator in 1994. Shantui digested and absorbed the advanced production technologies of Japanese Ko-matsu and
German Lie-bherr in succession and then chose the independent R&D road and gradually accumulated rich technologies. At present, Shantui excavator product lineup covers >30 product models in 1.7t~95t and meets
the demands of >95% customers. Especially, the release of 95t large-sized mining excavators in recent years manifested Shantui's rich technological strength. Relying on the resource advantages of Shandong Heavy
Industry Group, Shantui is the domestic sole excavator brand with proprietary power system, hydraulic system, and chassis. Shantui excavator products feature outstanding performances, high energy-saving and
efficiency, and high driving comfort. The full-molded covering parts are coated with electrophoresis primer to realize high weather resistance. The exclusive golden power combination of Weichai engine and Linde
hydraulic system and the 5-year or 10,000h extended warranty period relieve the user's operation troubles. Shantui's global leading drive sprockets, idlers, track rollers, carrier rollers, and tracks double the chassis life to
realize good wear resistance and longer life. The structural parts are manufactured with digitalized twin welding technology to promote the reliability by >30%, meet the diversified working conditions, and handle the
extreme working conditions, including high temperature, highland, and low temperature, with ease.

Product Parameters

SPECIFICATIONS	length × width × height	11126× 3200 × 3770
	Operating weight	34500kg
ENGINE	Model	Cum-mins 6LTAA8.9-C325
	Type	High pressure common rail, turbocharged
	No. of cylinder	6
	Displacement	8.9 L
	Power output	241 kW/2000 rpm
HYDRAULIC SYSTEM	Type	Variable plunger pump
	Maximum discharge flow	2 × 300 L/min
TRAVEL SYSTEM	Type	Axial variable plunger motor
	Travel shoes	2 x 48
	Travel speed	3.0~5.1km/h
	Drawbar pulling force	283 kN
	Gradeability	35°
	Minimum ground clearance	530 mm
OIL CAPACITY	Fuel tank	620 L
	Cooling system	35 L
	Engine oil	22 L
	Hydraulic oil tank	300L
	System Capacity	420 L
SWING SYSTEM	Brake type	Pressure Release Mechanical Braking
	Swing speed	0~10.5 rpm
	Tail swing radius	3520 mm
	Arm digging force	174 kN
	Bucket digging force	234 kN
BUCKET	Bucket capacity	1.6 m3
	Bucket width	1533 mm
	Maximum digging distance/	10840 mm/10645 mm
	Maximum digging radius at ground level
	Maximum digging depth/height	7070 mm/10030 mm
	Maximum dumping height	6890 mm
	Minimum swing radius	4430 mm
