Urine Sensor

Product Details

Product Description

Product Description

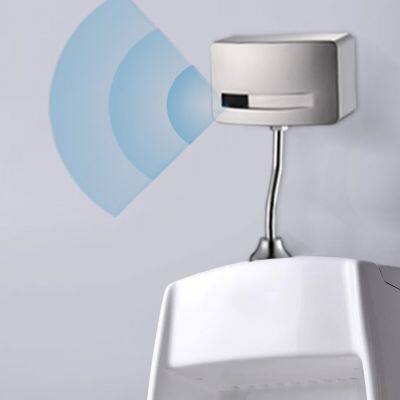

H-B36 Urine Sensor
Power supply: DC6V (4 No. 5 alkaline batteries).
Static consumption: ≤ 0.5W (DC)
≤ 3W (AC)
Flushing time: Flush for 2 seconds after induction, then flush for 4 seconds when leaving
Suitable water pressure: 01-0.6Mpa
Sensing range: automatic ranging
Inlet and outlet pipe diameter: G (1/2) "(DN15)
Induction confirmation time: 2 seconds (does not start within 2 seconds)
Applicable ambient temperature: 1-55 ℃
Flow rate: ≥ 0.12 (L/S)
Protection level: IP56
Functional features:
1. Infrared sensing, automatic water discharge and shut-off, water-saving, convenient, hygienic, and can effectively prevent bacterial cross infection.
2. The host is controlled by a microcomputer and can automatically adjust the flushing time based on the frequency of use and the duration of each use, which is more effective in saving water.
3. The average flushing volume of the machine is 1.2-3L in places with high usage frequency, and 2-4L in places with low usage frequency (note: water pressure is 0.3-0.6MPa)
4. Equipped with a water volume control valve and filter screen, non professionals can easily adjust the water volume and clean the filter screen.
5. When the urinal is not in use for a long time, the flushing device will automatically flush water once every 24 hours.
6. Surface mounted design reflects the integration of decoration and environment.
7. DC products use 4 No. 5 batteries, used 200 times a day, and there is no need to replace the batteries for two years.
8. The shelf life of this product is one year

---
