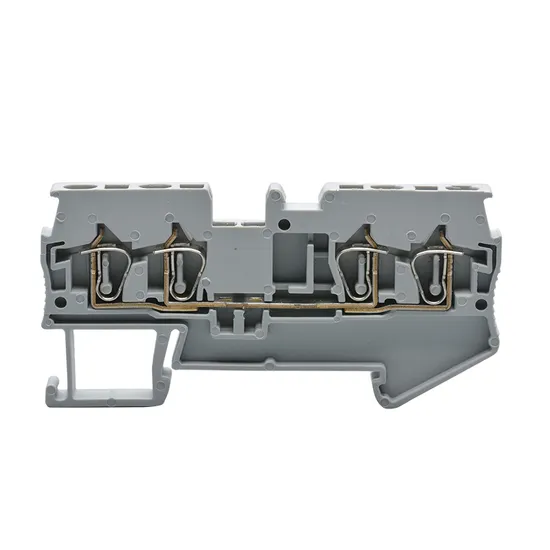

Jut3-2.5/2-2 Quattro Electric Spring Clamp Connectors Cable Wiring Terminal Blocks 2.5mm2

Product Description

JUT3 series:
1) The insulating shell is made of imported engineering plastic polyamide (nylon) 66 with high mechanical strength, good electrical characteristics and excellent elasticity.
2) The conductive strip is made of red copper plated with matte tin, and the line-pressing frame is made of brass plated with nickel, which has good electrical conductivity.
3) Flame retardant grade UL94 V0.
4) The pull-back spring terminal is connected from the upper line, the wire entry port is set at the top of the terminal, and the wiring groove can be installed close to the terminal block, which can make full use of the space of the electrical cabinet, improve the wiring density, and provide a good angle for observing the wiring position, which is convenient for wiring. It also has a clear marking system, the largest wiring capacity, and a flexible plug-in bridge system.
The fuse-type terminal block adopts segmented hanging wall to connect to the G-type fuse, which is very convenient to operate. The shell adopts a fully enclosed type, which is safe and reliable. Terminals with an illuminated display give an on-off signal for the fuse. The current of this type of terminal is determined by the installed fuse, and the voltage is determined by the selected illuminated terminal display.
5) The product has universal mounting feet, which can be easily and quickly installed on the NS35 rail.
Product Description Specification

ame	Data	Unit
Number of connection points	4
Number of potentials	1
Color	gray
Length	72	mm
Width	5.2	mm
With U-rail height	36.5	mm
Pollution degree	3
Insulation material group
Rated surge voltage	8	KV
Meet standard	IEC60947-7-1
Rated voltage	800	V
Nominal current	24	A
Meet standard	UL1059
Rated voltage	600	V
Nominal current	20	A
Min.connection capacity for solid wire	0.2/24	mm²/AWG
Max.connection capacity for solid wire	42472	mm²/AWG
Min.connection capacity for strand wire	0.2/24	mm²/AWG
Max.connection capacity for strand wire	2.5/14	mm²/AWG
Line direciton	vertical to terminal
Strip length	10	mm
Insulation material	PA66
Flame-retarded Rating	UL94 V-0
Flame-retarded Rating	UL94 V-0

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. FAQ 1. who are we?
We are based in Shanghai, China, start from 2013,sell to Eastern Europe(40.00%),Western Europe(20.00%),Southern Europe(10.00%),Northern Europe(10.00%),North America(10.00%),Eastern Asia(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Terminal Blocks,Cable Gland,Indicator Light,Push Button,Machine Equipment
4. why should you buy from us not from other suppliers?
we have over 30 years experience in wiring solution with own manufacturer base . we get UL VDE TUV certificates for terminal blocks we have about 300 workers to shorter the delivery time
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese Contact us

---
